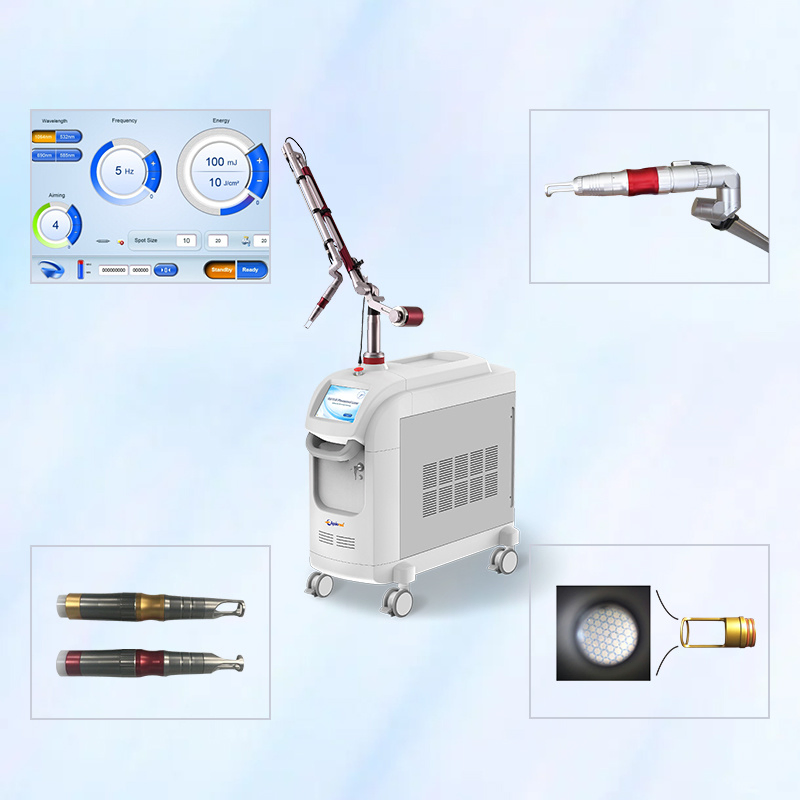

| Model NO. | HS-298 |
| Application | for Commercial |
| Certificate | CE0197, ISO13485, FDA 510K |
| Feature | Pigment Removal, Tattoo Removal |
| Wavelength | 1064 / 532nm |
| Pulse Width | 300PS or 450PS |
| Pulse Energy | 500mj (1064nm), 250mj (532nm) |

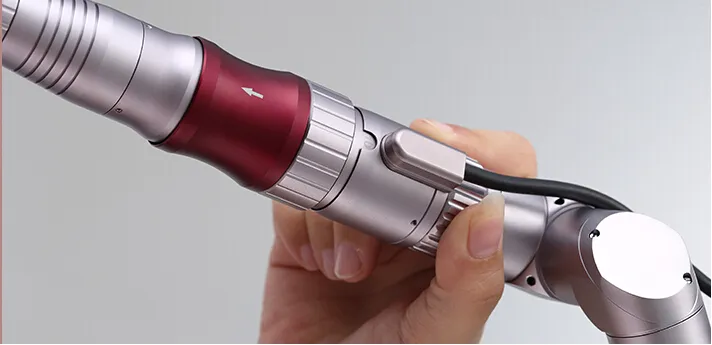

| Spot Size | 2-10mm Adjustable |
| Repetition Rate | 1-10Hz |
| Cooling System | Air & Advanced Cooling System |

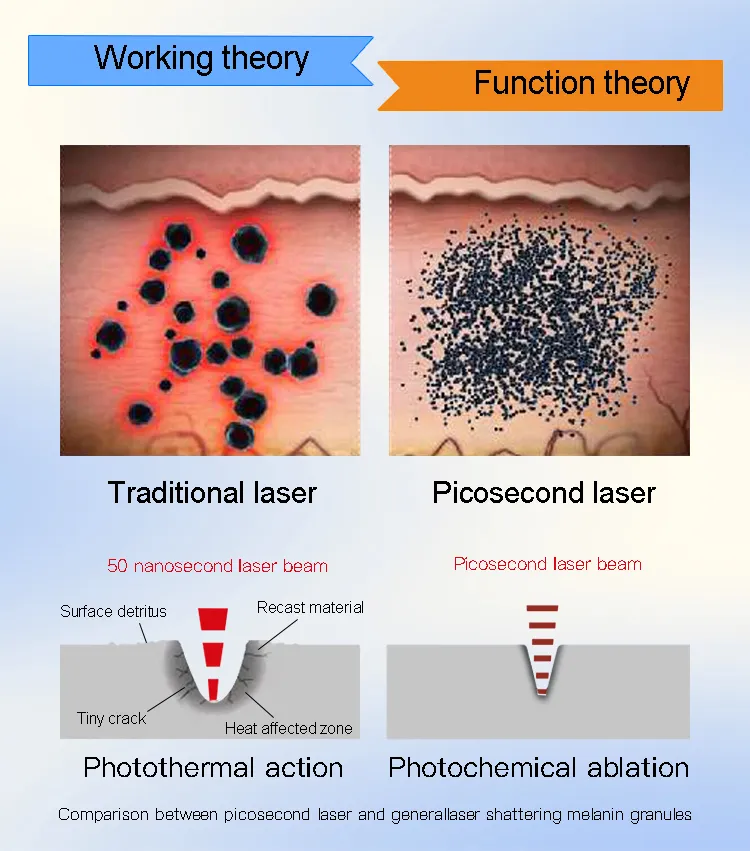

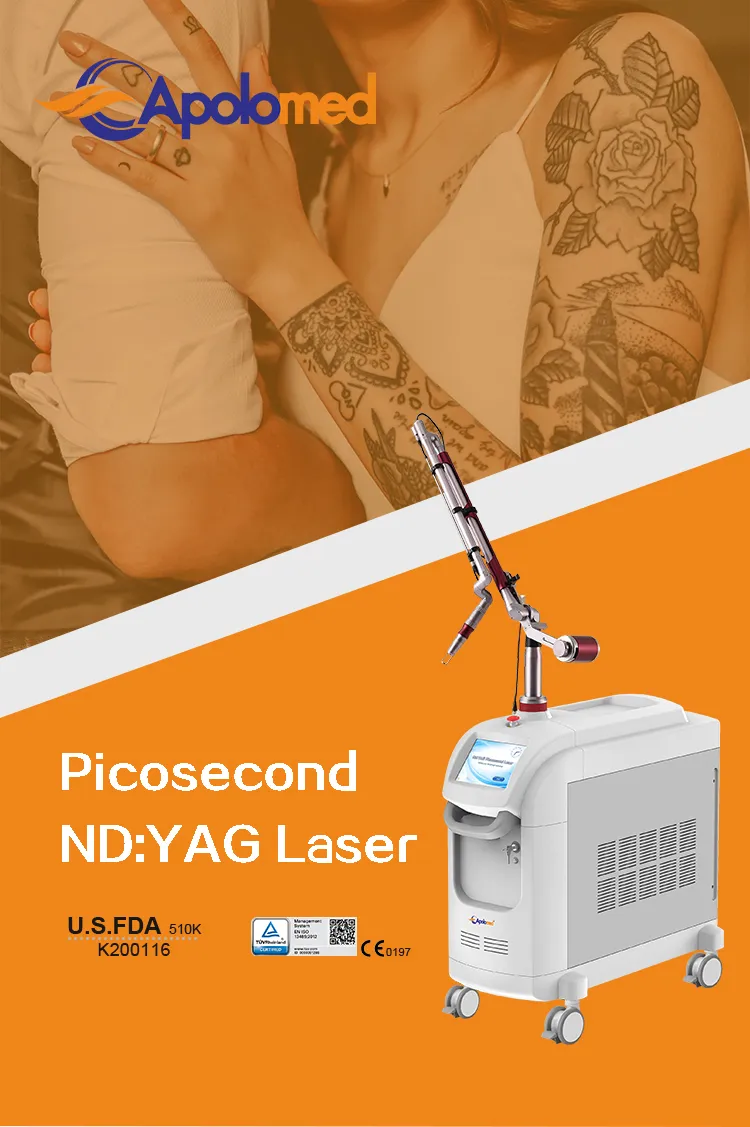

The Picosecond Nd:YAG laser is the first safe and effective aesthetic laser specifically designed to treat tattoos and pigmented lesions. This innovative laser delivers ultra-short pulse bursts of energy to the skin in trillionths of a second.

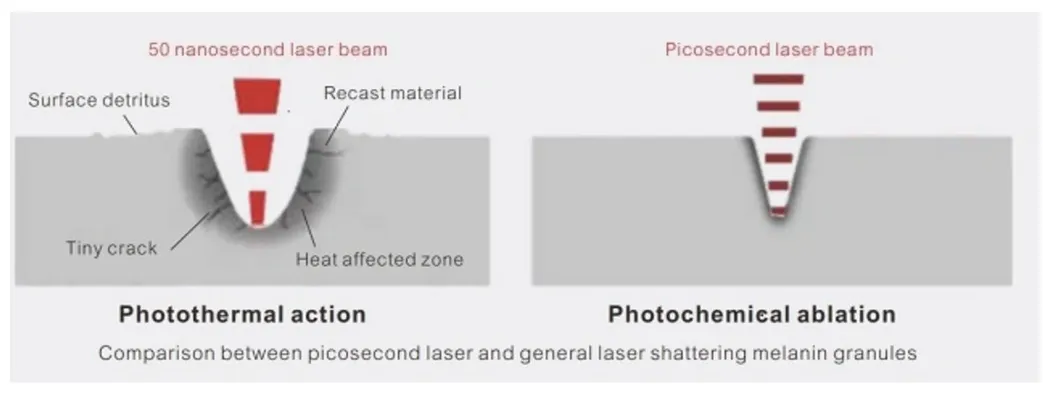

These pulses create a photomechanical effect that targets ink while avoiding unmarked tissue. The pulse shatters the ink into tiny, dust-like particles which are easily eliminated by the body.
| Laser Type | Picosecond Nd:YAG laser |
| Beam Profile | Flat-top mode |
| Energy Calibration | External & self-restoration |

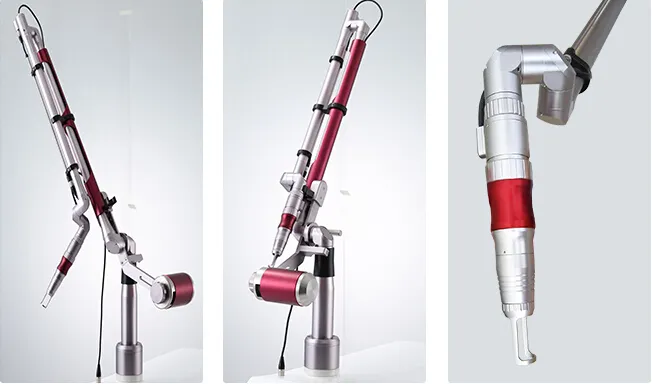

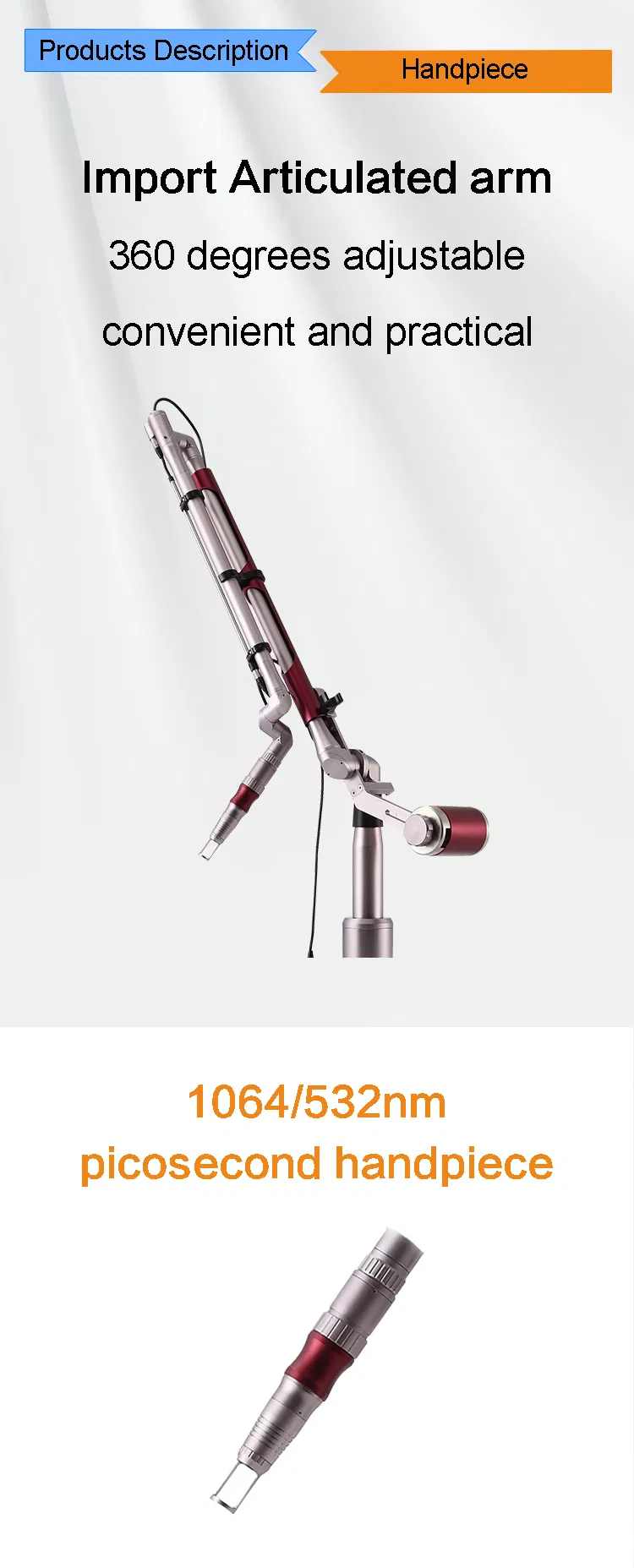

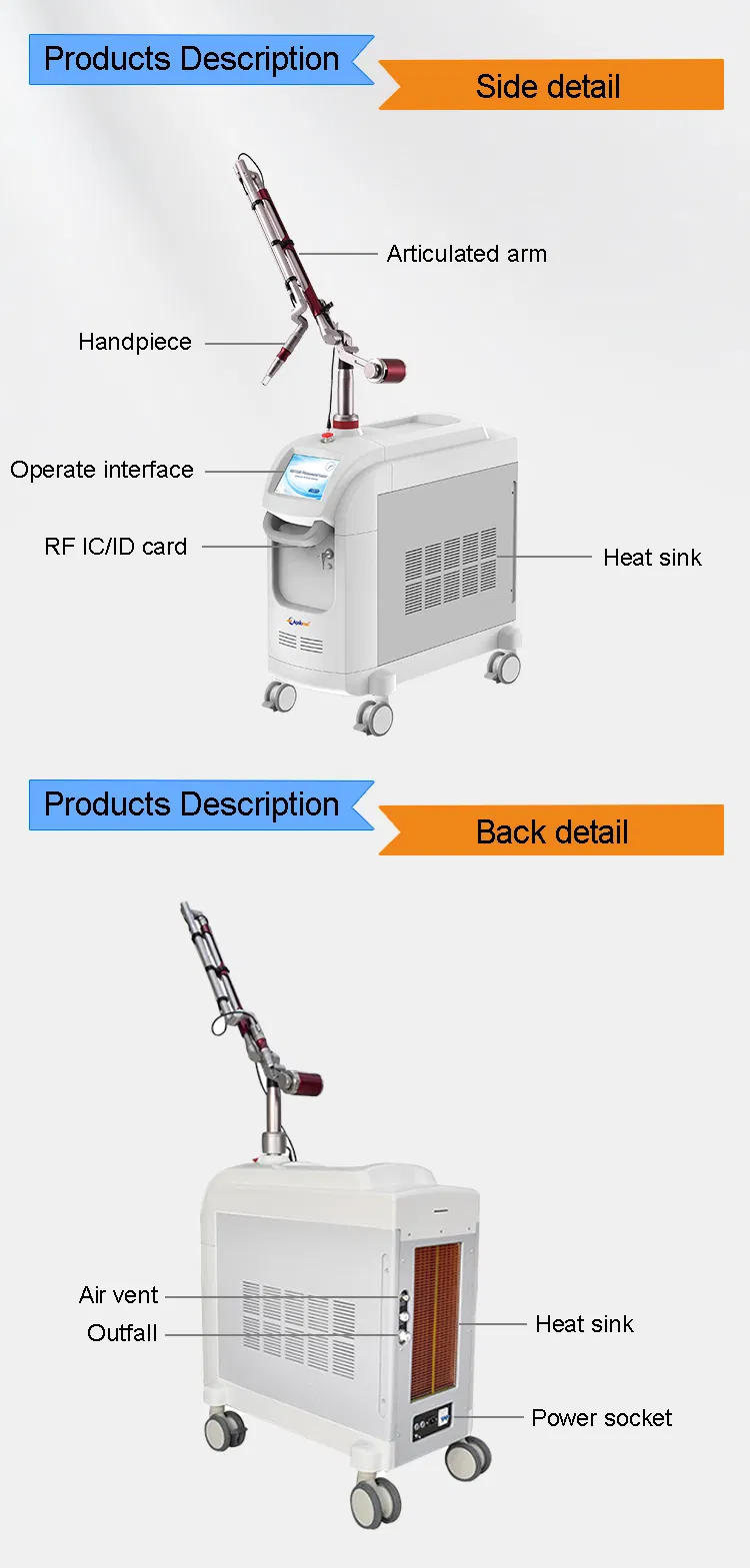

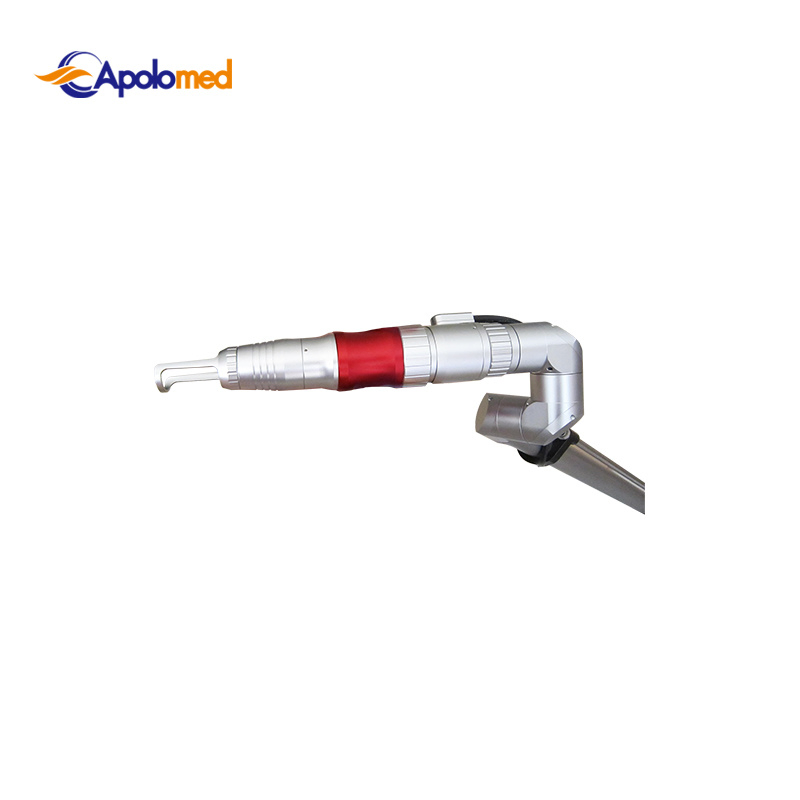

| Optical Delivery | 7 Jointed Articulated arm |

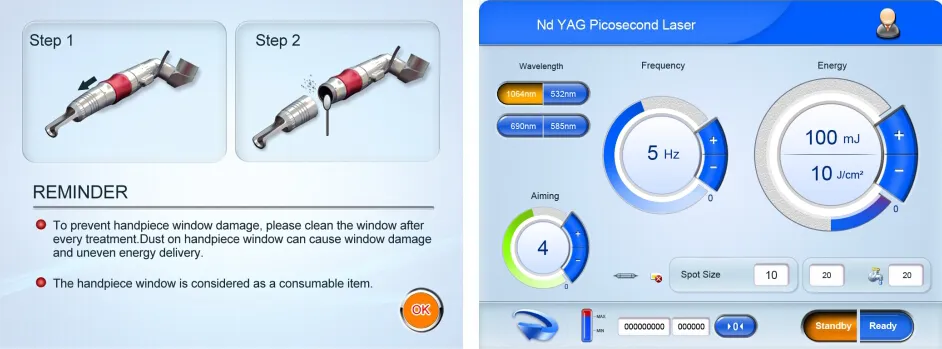

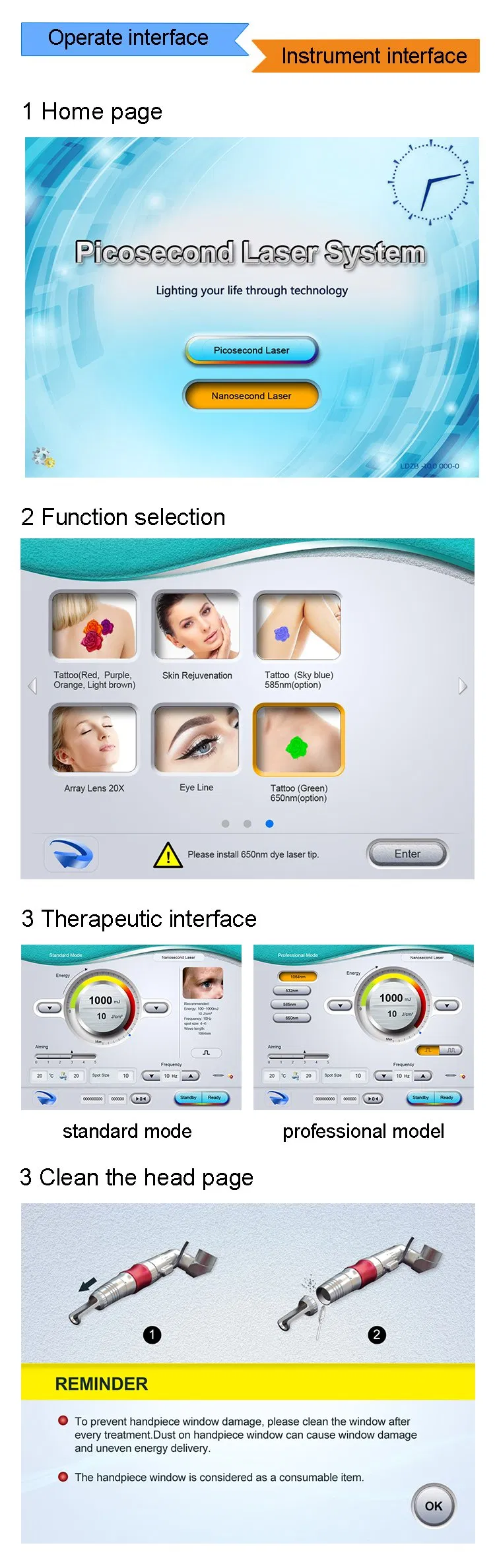

| Interface | 9.7" True Color Touch Screen |
| Aiming Beam | Diode 650nm (Red), adjustable brightness |
| Power Supply | AC100V or 230V, 50/60HZ |
| Dimension | 97*48*97cm |
| Weight | 130kg |

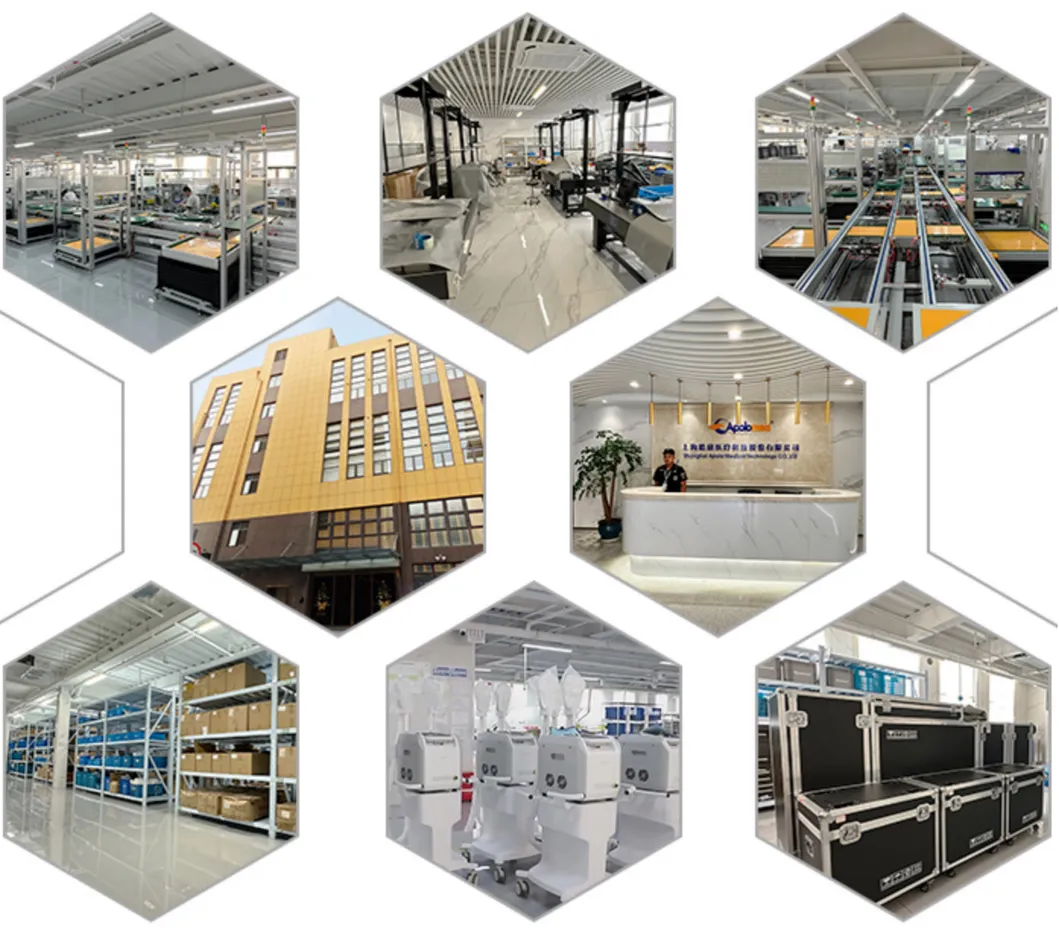

Equipment is manufactured strictly in accordance with ISO 13485. All products comply with Medical CE certificates (MDD 93/42/EEC and MDR EU 2017/745). High-end models have obtained US FDA 510K, Australia TGA, and Brazil Anvisa certifications.
