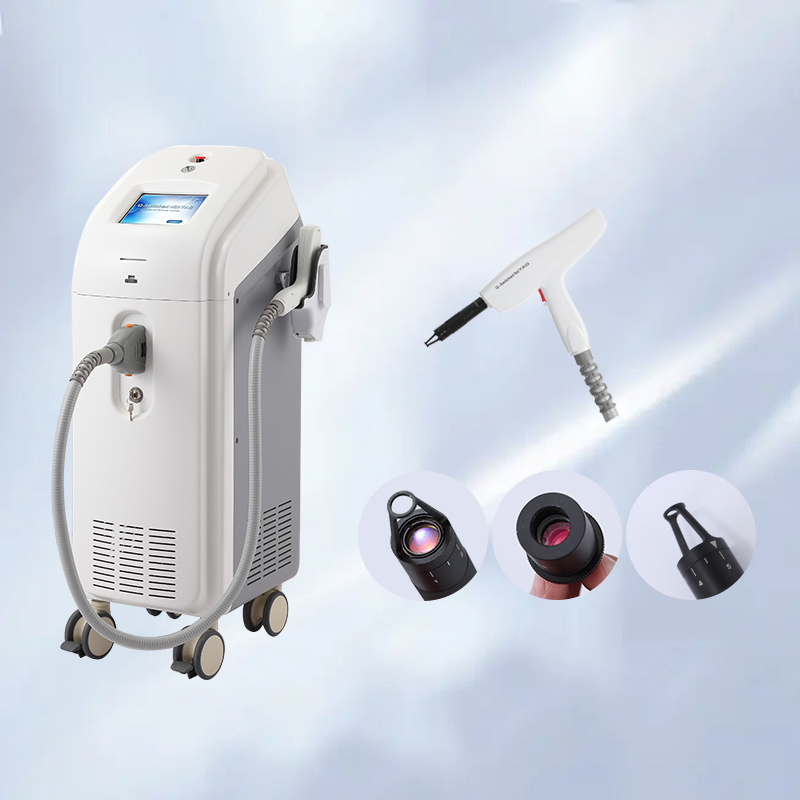

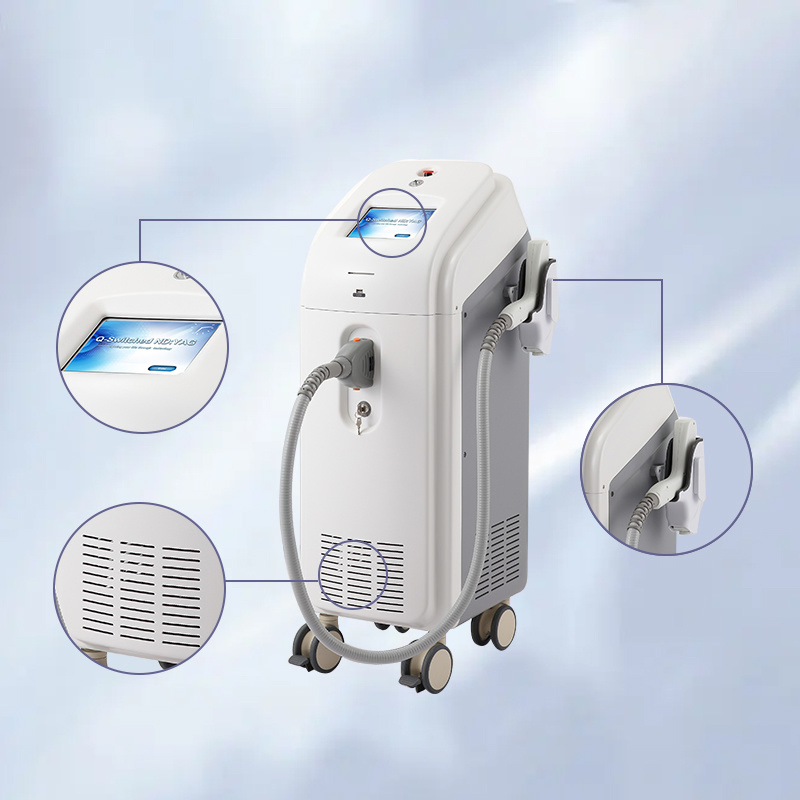

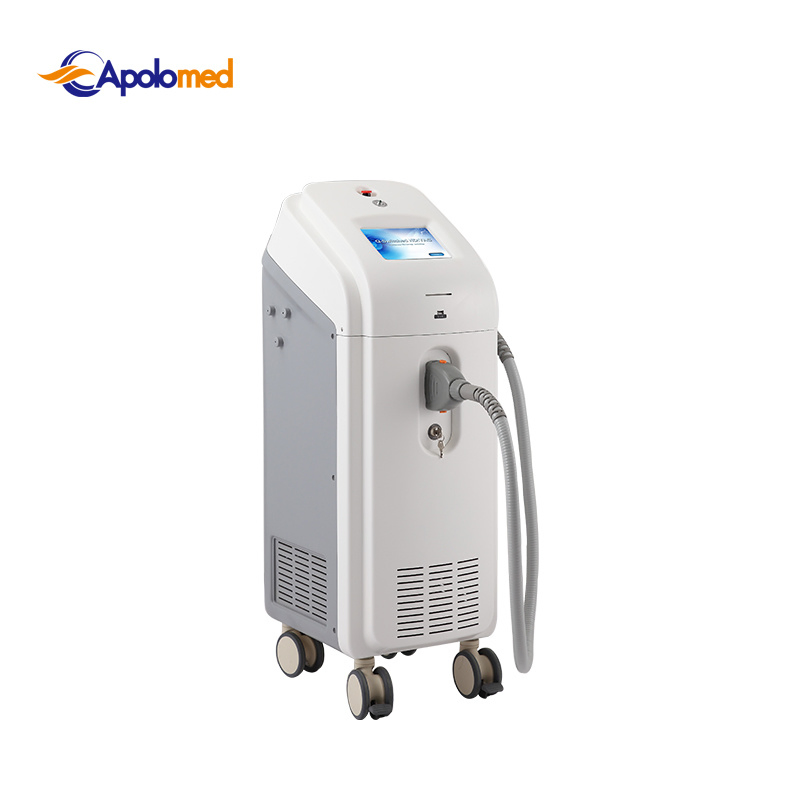

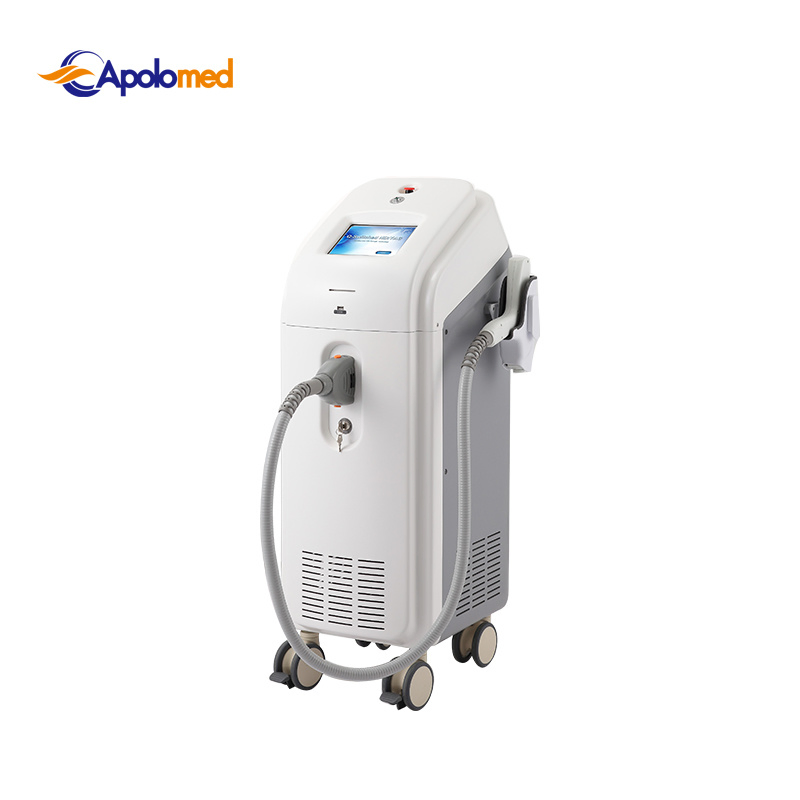

ND YAG Laser Dermatology Equipment - Tattoo Removal and Skin Toning

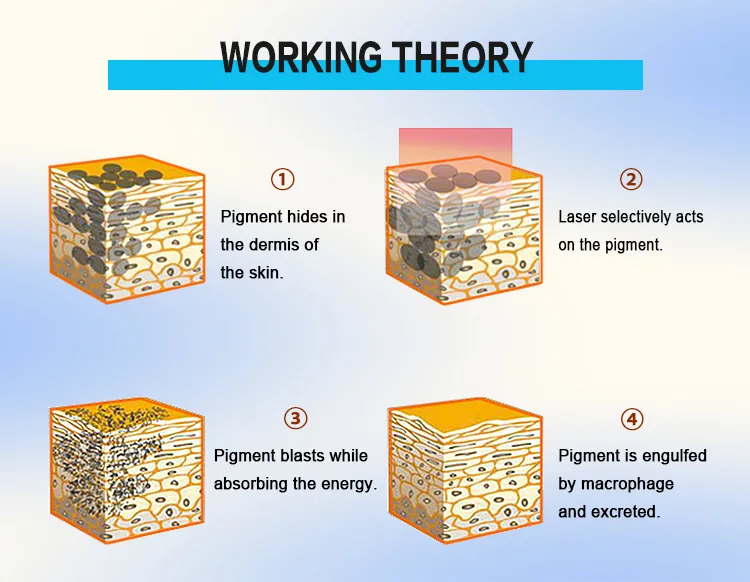

Working Theory: The special wavelength of YAG laser can penetrate skin of human body according to the theory and practice of "selective laser decomposing". The instrument uses the laser-wave to break Chromatophore into pieces which can be naturally absorbed by the body, achieving the purpose of de-freckling.
The 1064nm wavelength shatters and removes black and blue pigments, while the 532nm wavelength shatters and removes red, pink, purple, and brown pigments without damaging normal tissue.
| Parameter | Single Rod (Φ7) | Double Rods (Φ6+Φ7) |
|---|---|---|
| Wavelength | 1064nm & 532nm | |
| Max. Energy (1064nm) | 2400mJ | 4700mJ |
| Max. Energy (532nm) | 1200mJ | 2350mJ |
| Pulse Width | <10ns (single pulse) | |

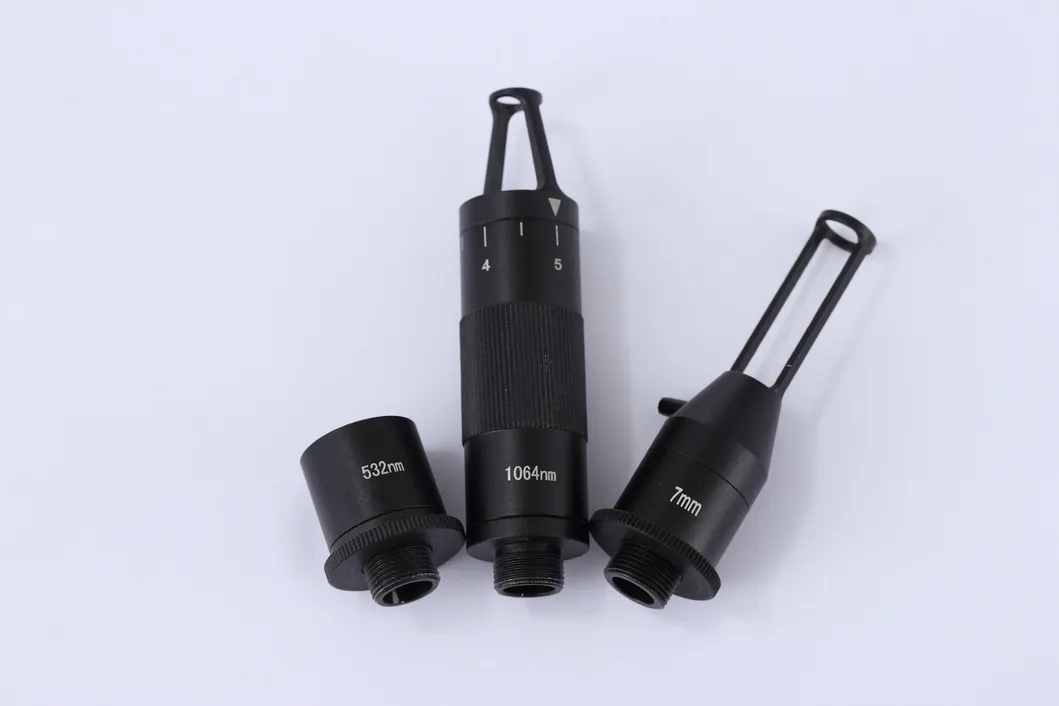

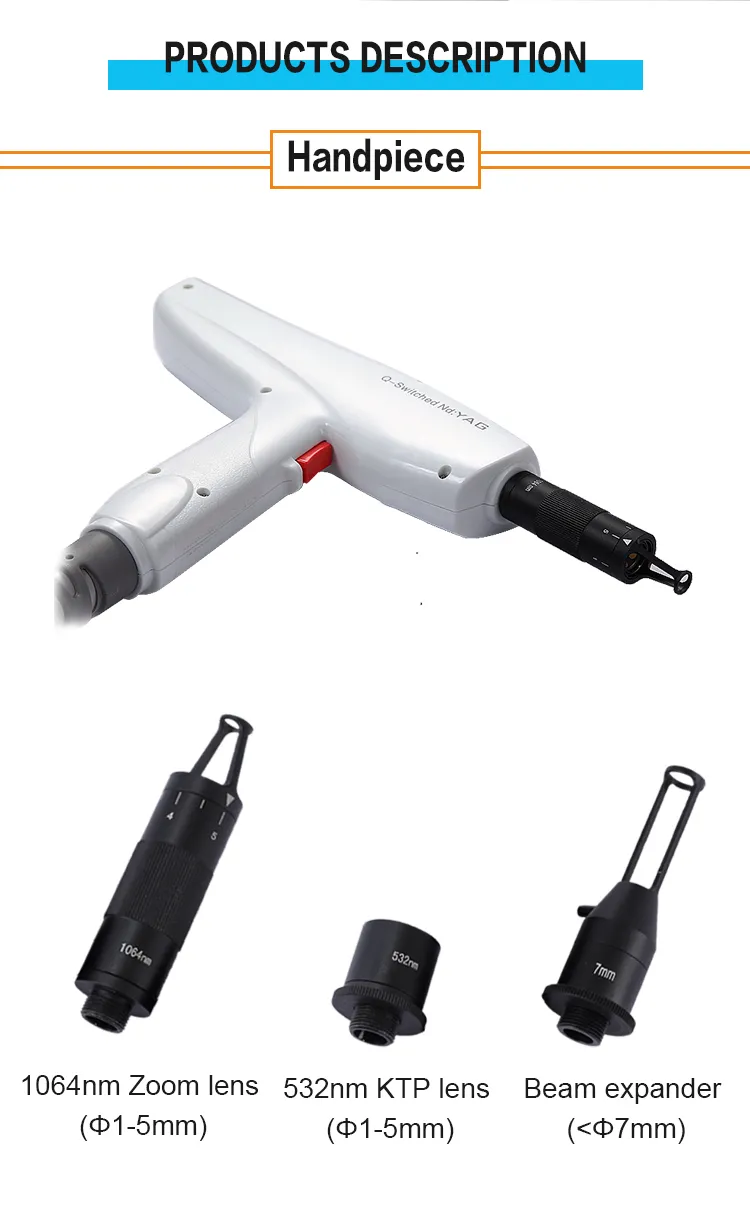

| Spot Size | 1~5mm | |
| Repetition Rate | 1~10Hz | |

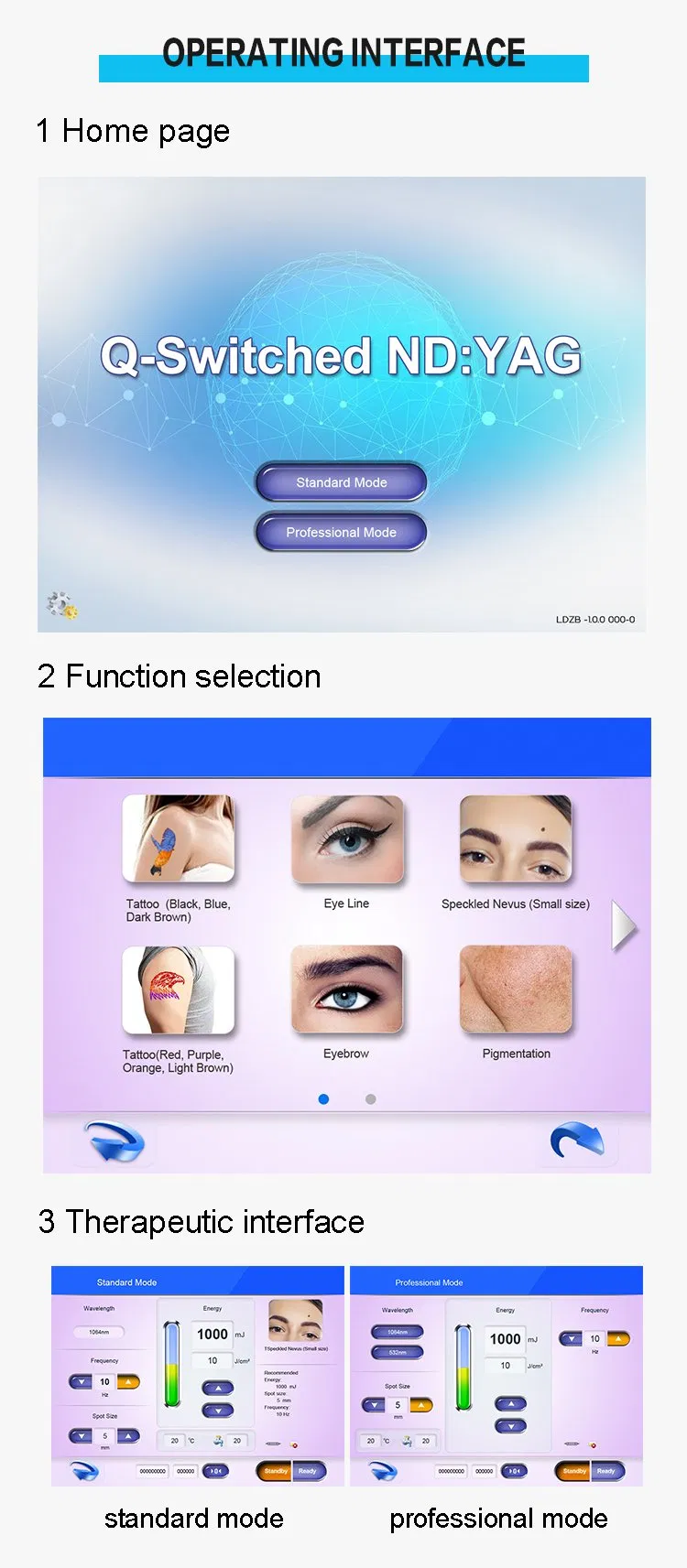

| Interface | 8" True Color Touch Screen | |
| Aiming Beam | Diode 650nm (Red) | |
1064nm: Black, Blue pigments
532nm: Red, Pink, Purple, Brown pigments
Core Advantages:
