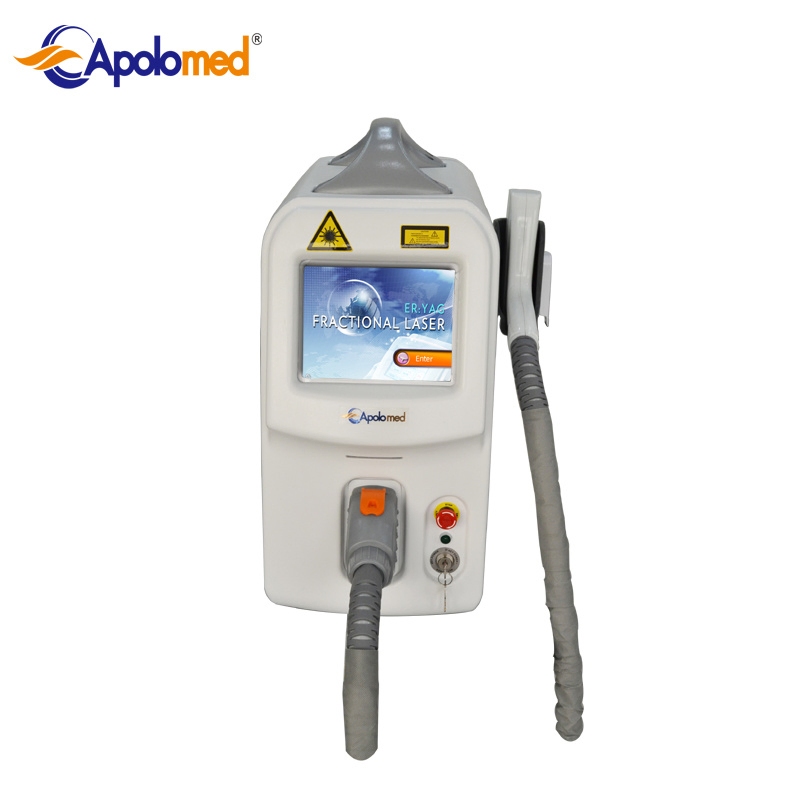

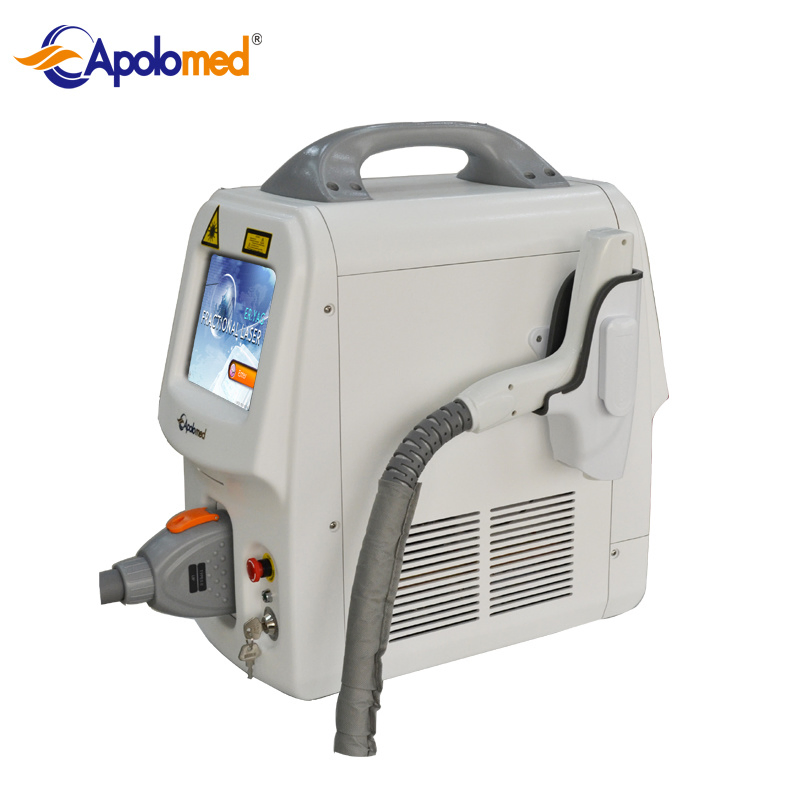

Medical Laser Diode Laser 2940nm Erbium Glass Fractional Laser for Skin Toning with CE Approved

Customization: Available
Type: 2940nm Er:YAG Fractional Laser
Theory: 2940nm Er:YAG Fractional Laser

Product Description

📋

Overview & Basic Info

Model NO.HS-282
Applicationfor Commercial
PortablePortable
CertificationCE0197, ISO13485
Wavelength2940nm
Fractional10X10mm 2-13mj/Mtz
Repetition Rate1-6Hz
Cooling SystemAdvanced Air Cooling
Operation Interface8" True Color Touch Screen
OriginChina
🔬

Product Description

Medical Laser Diode Laser 2940nm Erbium Glass Fractional Laser for Skin Toning with CE Approved

The Erbium (Er) yag laser is a kind of solid laser with a wavelength of 2940nm. It is in the infrared area which is invisible. It has peak value of absorption to water. The cutaneous absorption of the Er:YAG laser energy by water is 10-fold more efficient than that of the carbon dioxide laser, allowing for more superficial tissue ablation and finer control. Pulsed laser energy causes controlled vaporization of the skin according to the principles of selective photothermolysis.

Laser Device
Technical Specs

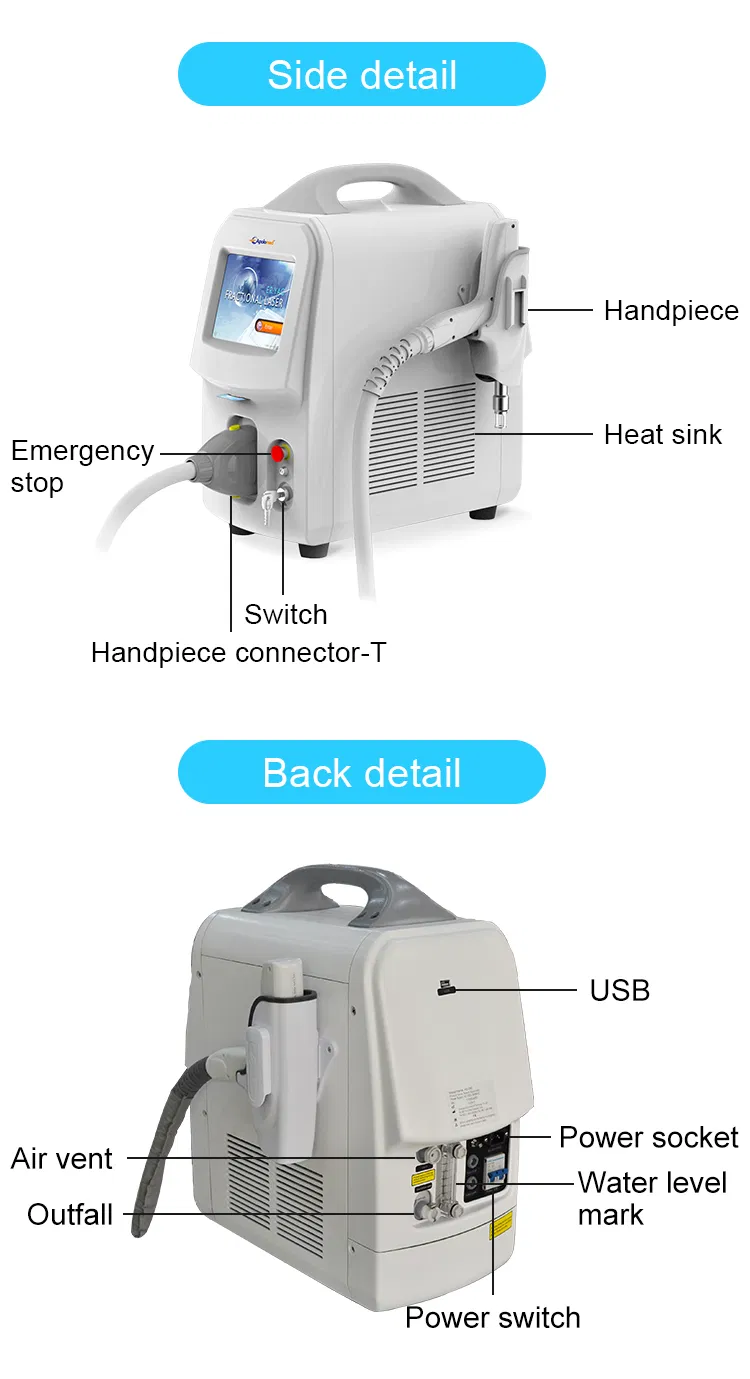

Interface
Clinical Effect
Laser System
📊

Specifications

Model#HS-282
Wavelength2940 nm Er:YAG

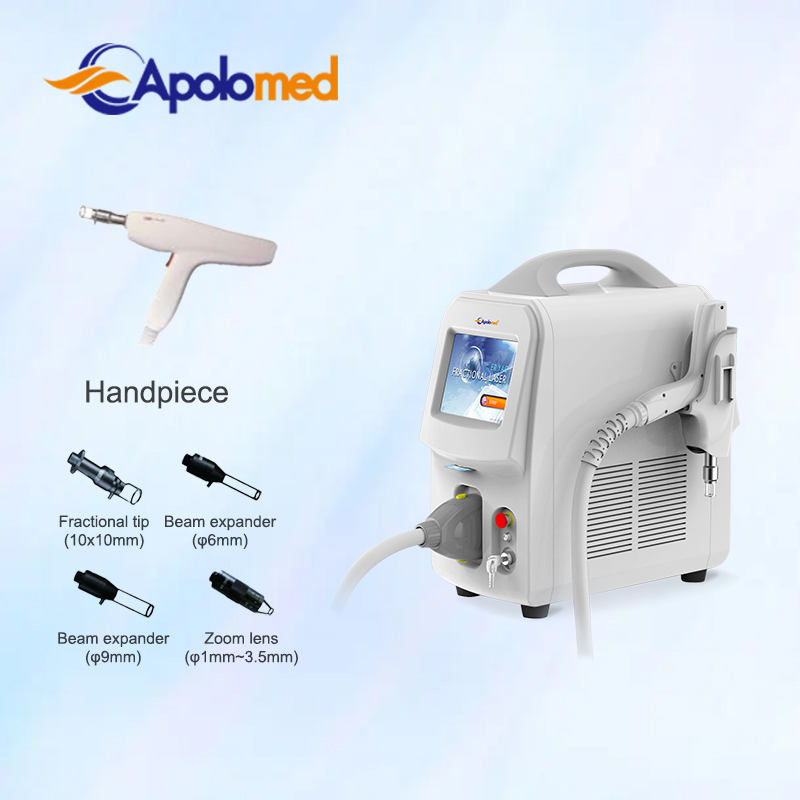

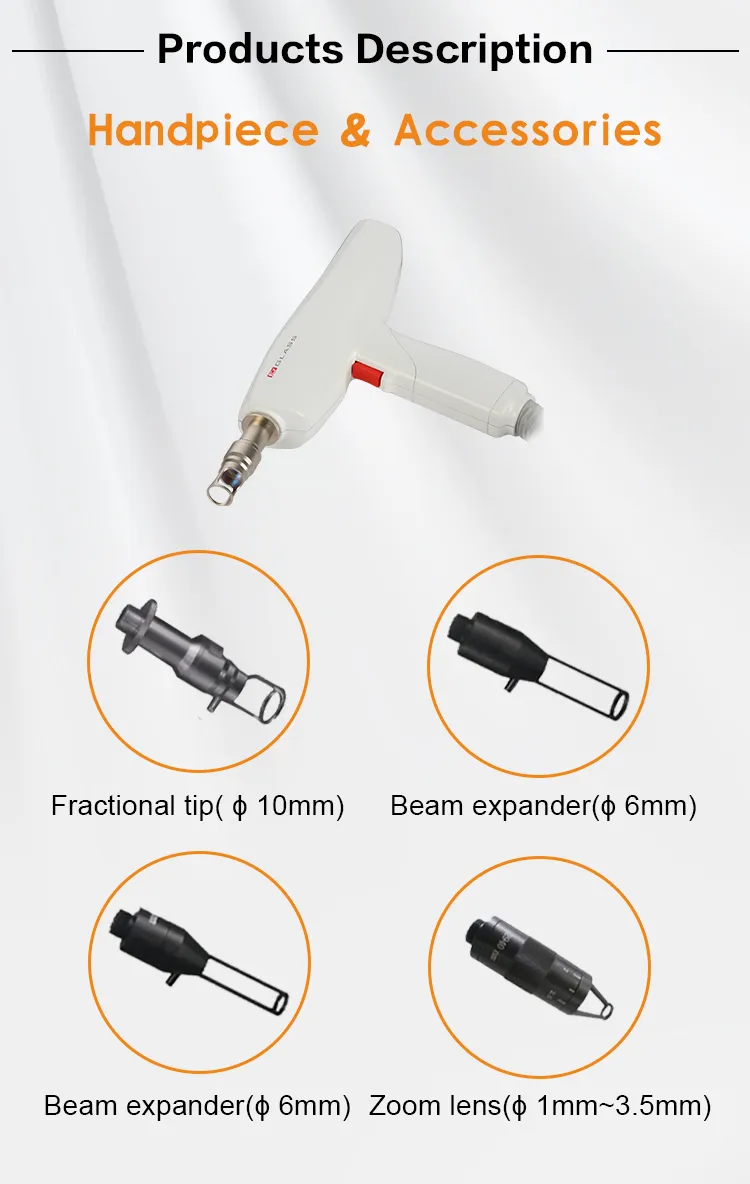

EnergyFractional: 2~13mJ/MTZ; Beam expander: 150~800mJ; Zoom lens: 150~800mJ
Repetition rate1-6HZ
Pulse width300us
Operation interface8" true color touch screen
Cooling systemAdvanced air cooling system
Dimension55x26x58cm (L*W*H)
Weight15Kgs

Applications

  • Skin resurfacing
  • Surgical scar removal (more aggressive level)
  • Photo damage treatment
  • Stretch marks removal
  • Melasma (dark skin patches)
  • Wrinkles and fine lines reduction
  • Wart and nevus removal
  • Texture irregularity correction
Deep tissue therapy
Scar removal effect
🏆

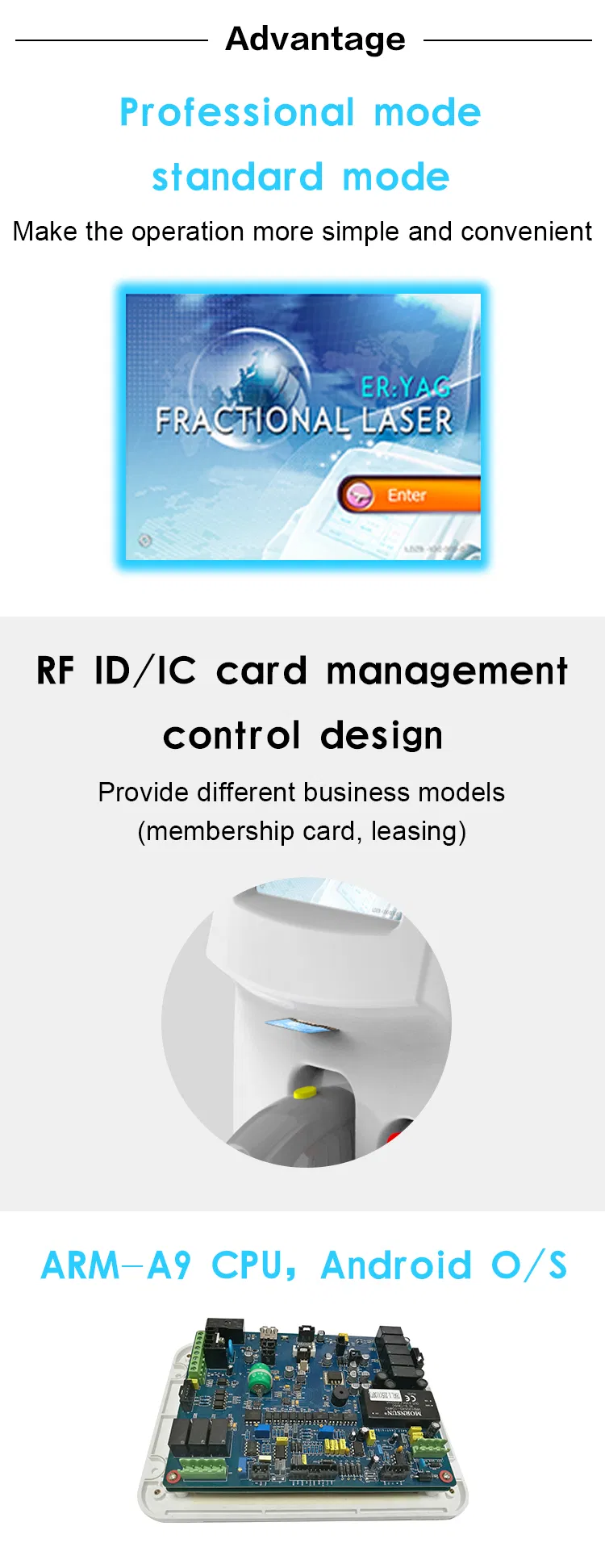

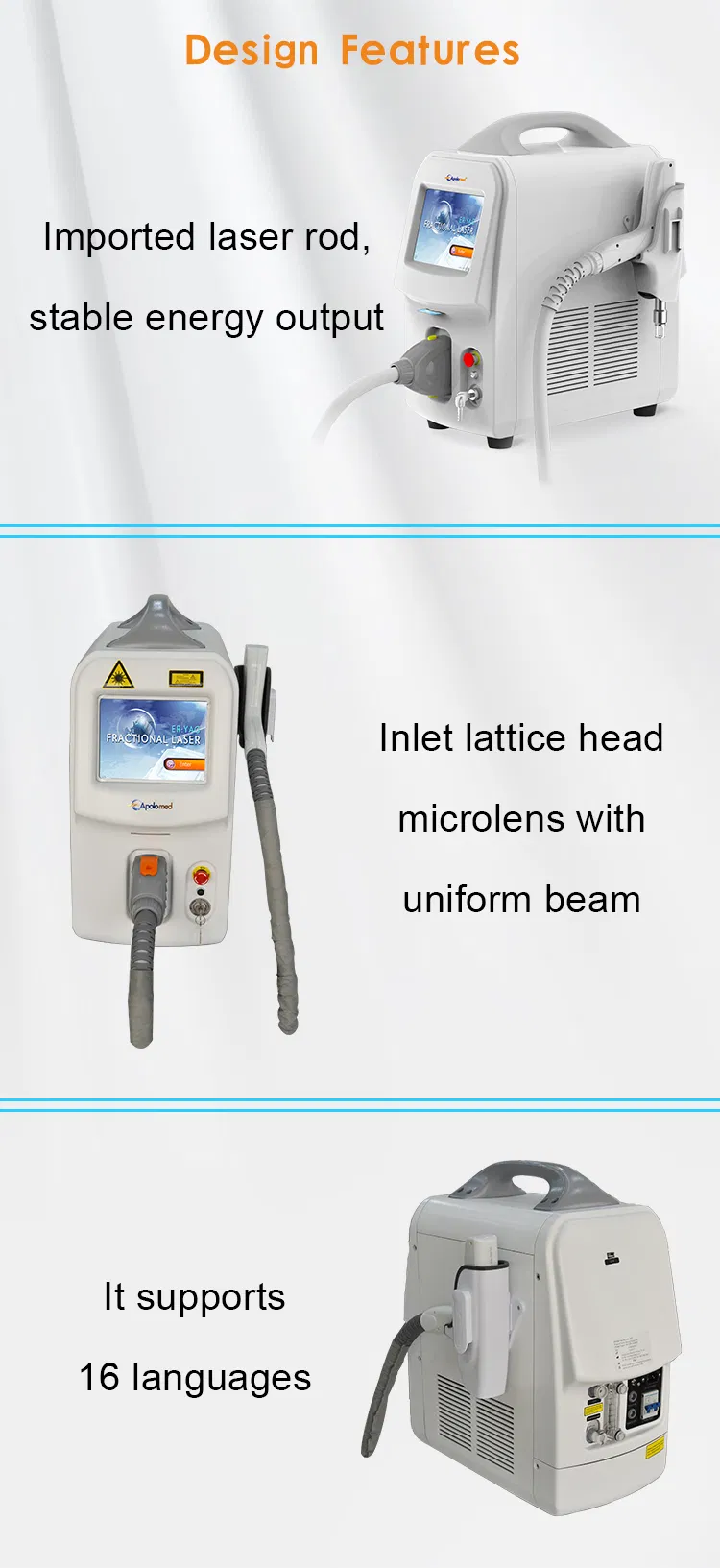

System Advantages

  • US origin laser rod with stable, reliable and powerful laser output
  • DE origin fractional lens with long life span
  • Water filter is double secured to ensure long life of the laser resonator
  • Multi-languages supported for global market requirements
  • Interlock design ensures safety treatment environment
  • Modularized design for convenient maintenance
  • RF ID/ IC management control for business operations models
  • Linux/ Android operation system for customer database and app development
🏢

Professional Manufacturing

As a leading designer and manufacturer of Intense Pulsed Light(IPL) and various laser technologies, we have developed over 40 high-standard devices since 2001. Our equipment is manufactured strictly in accordance with ISO 13485 and complies with Medical CE certificates (MDD and MDR).

Device showcase
Certificates

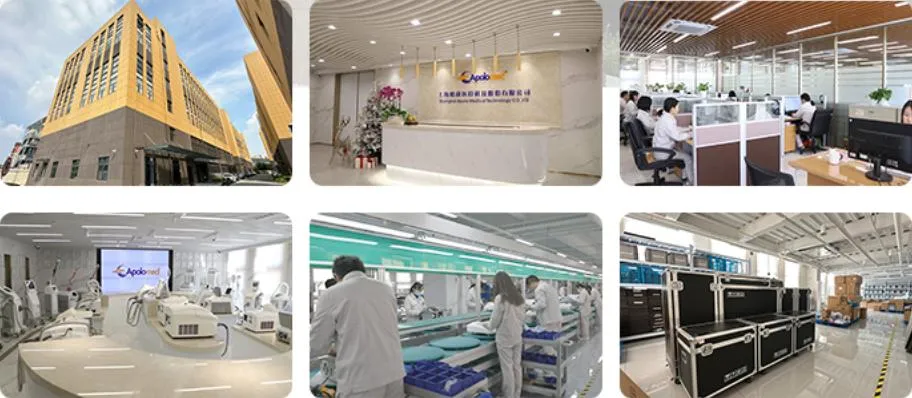

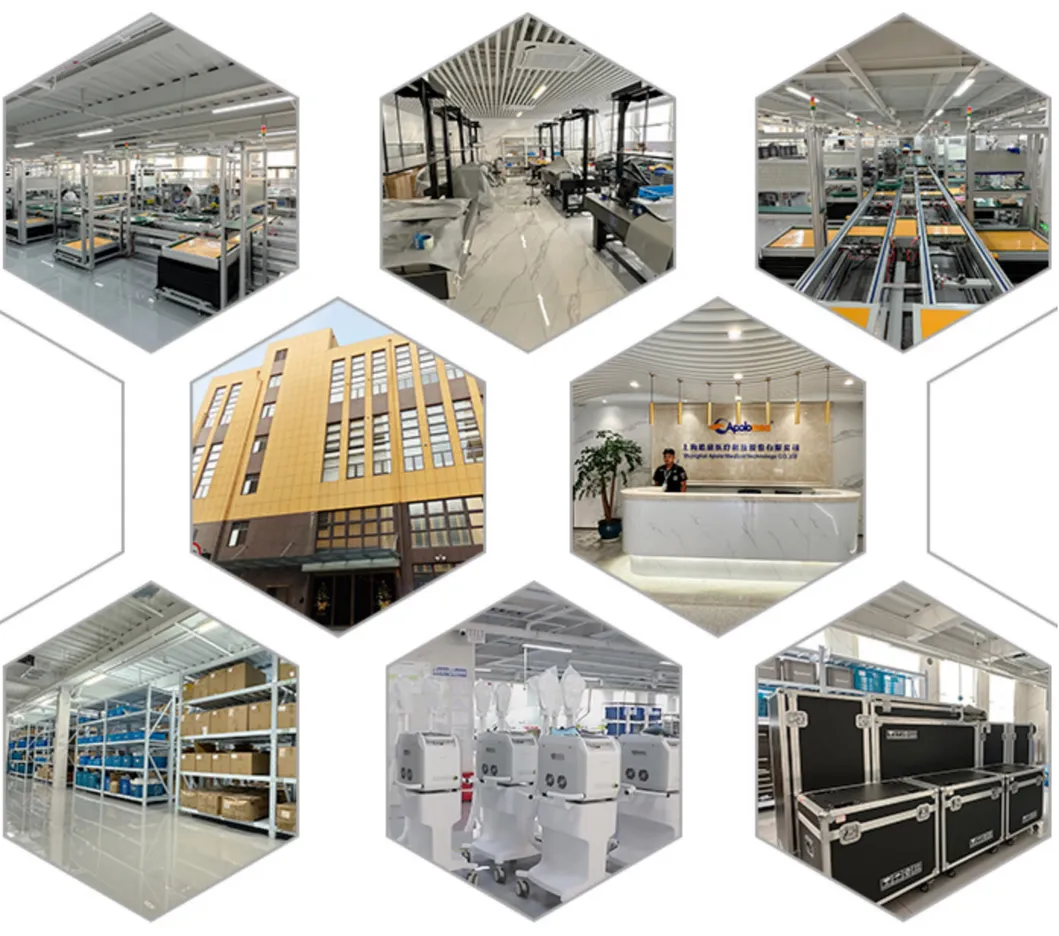

Factory View
Exhibition
🚚

Shipping & Packaging

Packaging

Frequently Asked Questions

1. What is the main benefit of the 2940nm Er:YAG wavelength? The 2940nm wavelength has a very high absorption rate in water, making it extremely efficient for superficial tissue ablation and precise skin resurfacing with minimal thermal damage compared to other lasers.
2. Is the HS-282 laser system portable? Yes, the HS-282 is designed as a portable medical laser unit, making it suitable for clinics and commercial aesthetic centers with space considerations.
3. What certifications do your medical devices hold? Our equipment is manufactured under ISO 13485 standards and complies with Medical CE certificates under Council Directive 93/42/EEC (MDD) and regulations (EU) 2017/745 (MDR).
4. Can this machine be used for scar removal? Yes, it is highly effective for surgical scar removal, stretch marks, and accidental scars by promoting the growth of well-organized collagen and elastin.
5. What kind of cooling system does the device use? The device features an advanced air cooling system to ensure stable operation and comfort during treatment sessions.
6. What cooperation models are available? We provide flexible business opportunities including Dealer partnerships, Distributorships, and comprehensive OEM/ODM services.
