| Customization: | Available |
|---|---|

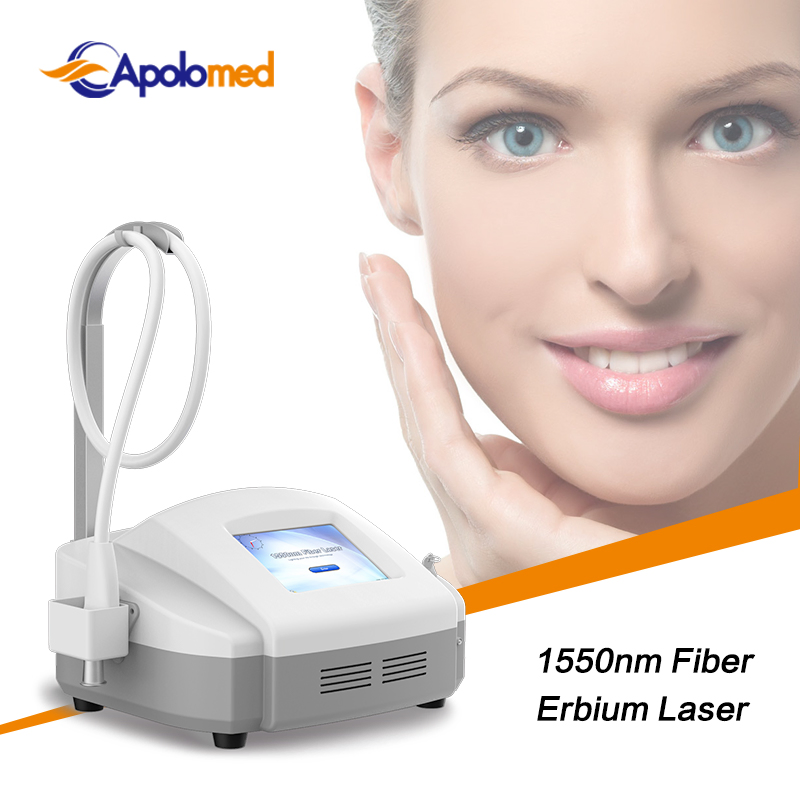

| Type: | 1550nm Fiber Erbium Laser |
| Theory: | 1550nm Fiber Erbium Laser |

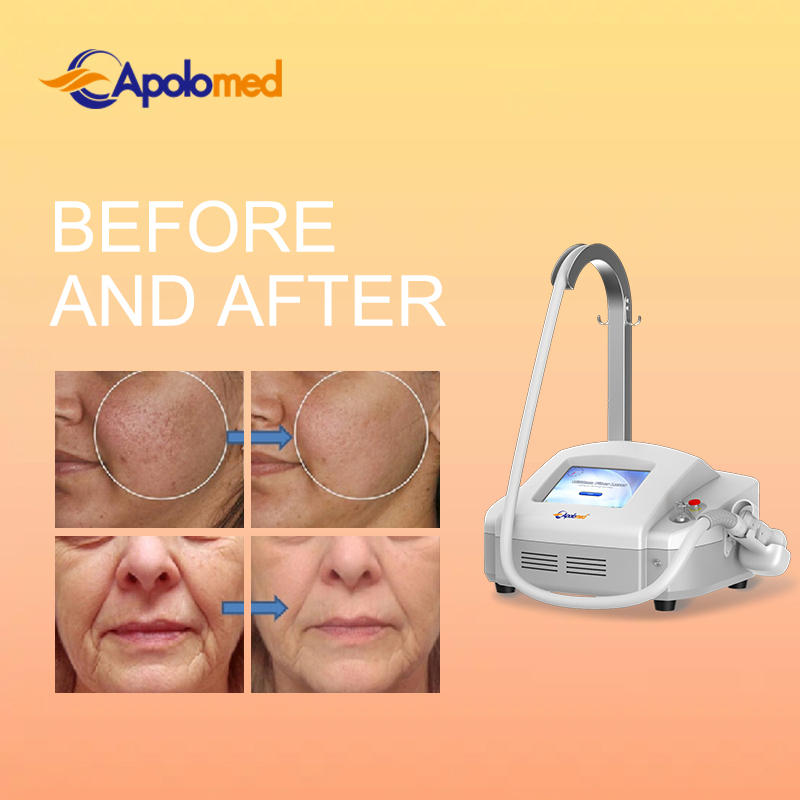

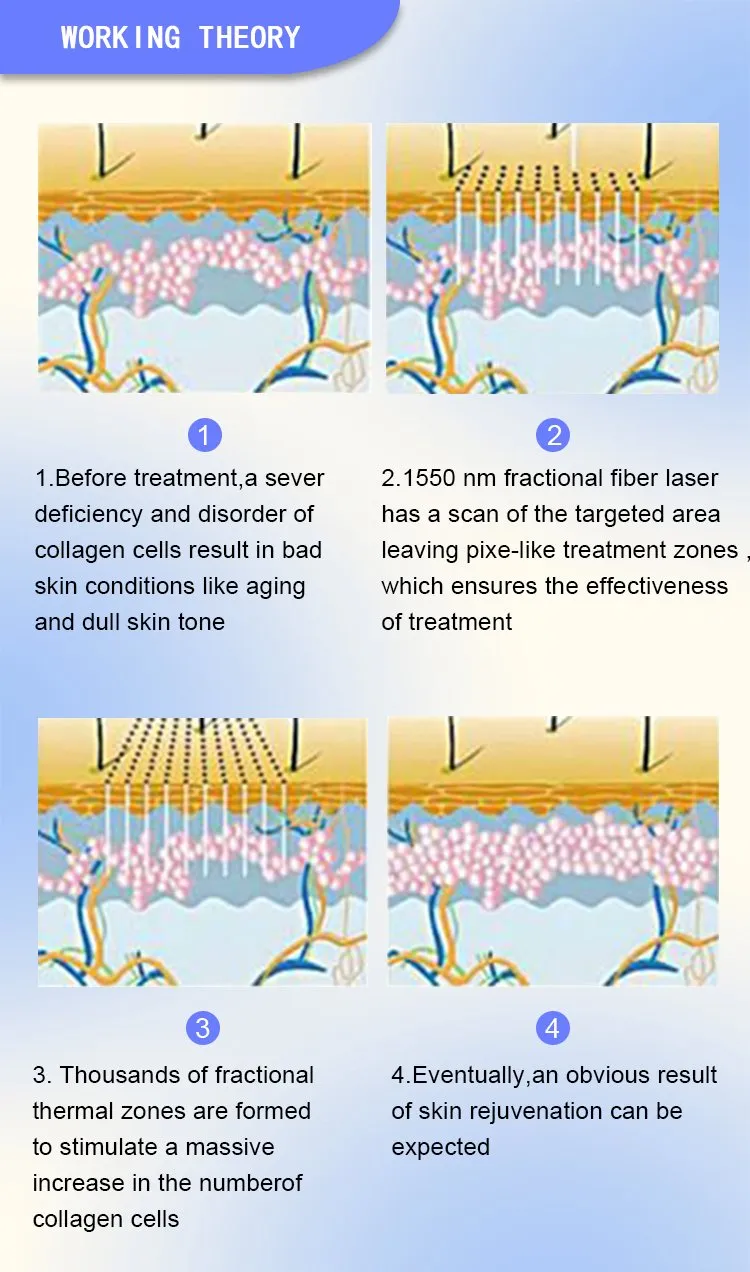

1550nm Erbium fiber laser is splitted into numbers of microscopic beams to the skin, known as microscopic thermal zone. The fractionaized beams not only trigger the healing process of the skin, but also keep the tissues around the coagulation zone. The treatment removes old epidermal pigmented cells and penetrates deep into the dermis, remolding collagen and getting skin regeneration.

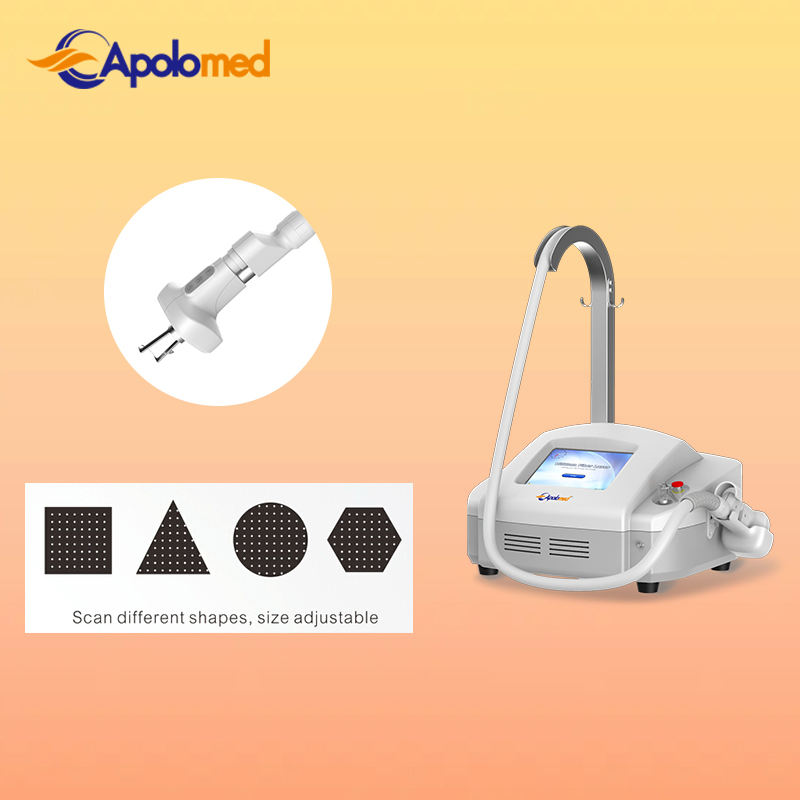

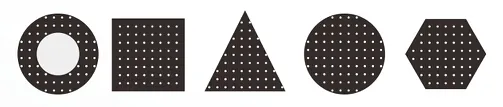

Fiber laser treatment with adjustable scan shapes for precision.

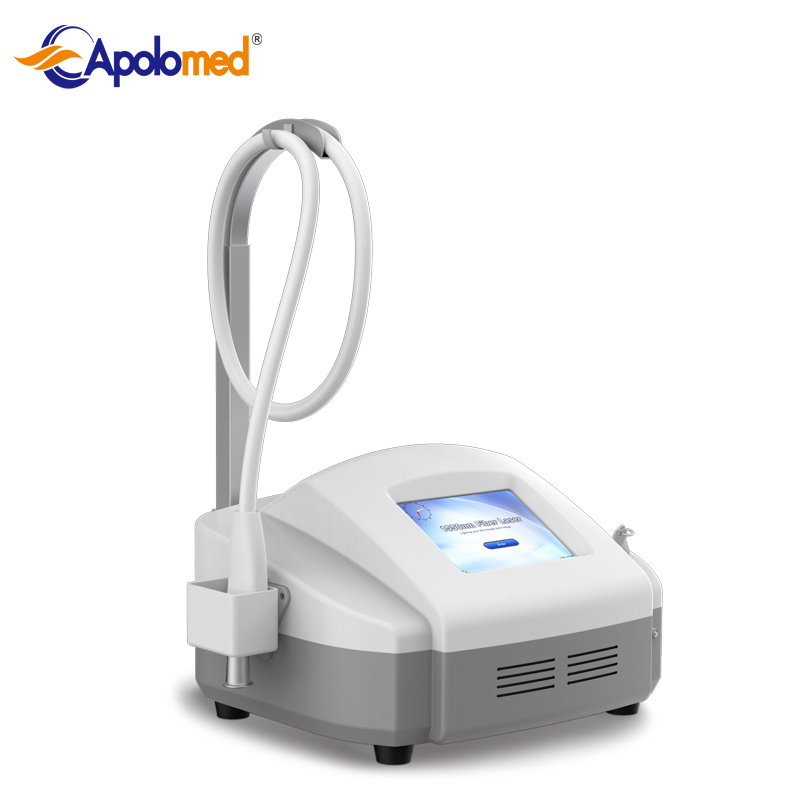

| Model | HS-230 |
|---|---|
| Wavelength | 1550nm Erbium fiber laser |
| Laser power | 15W |
| Laser output | 1~120 mJ/dot |

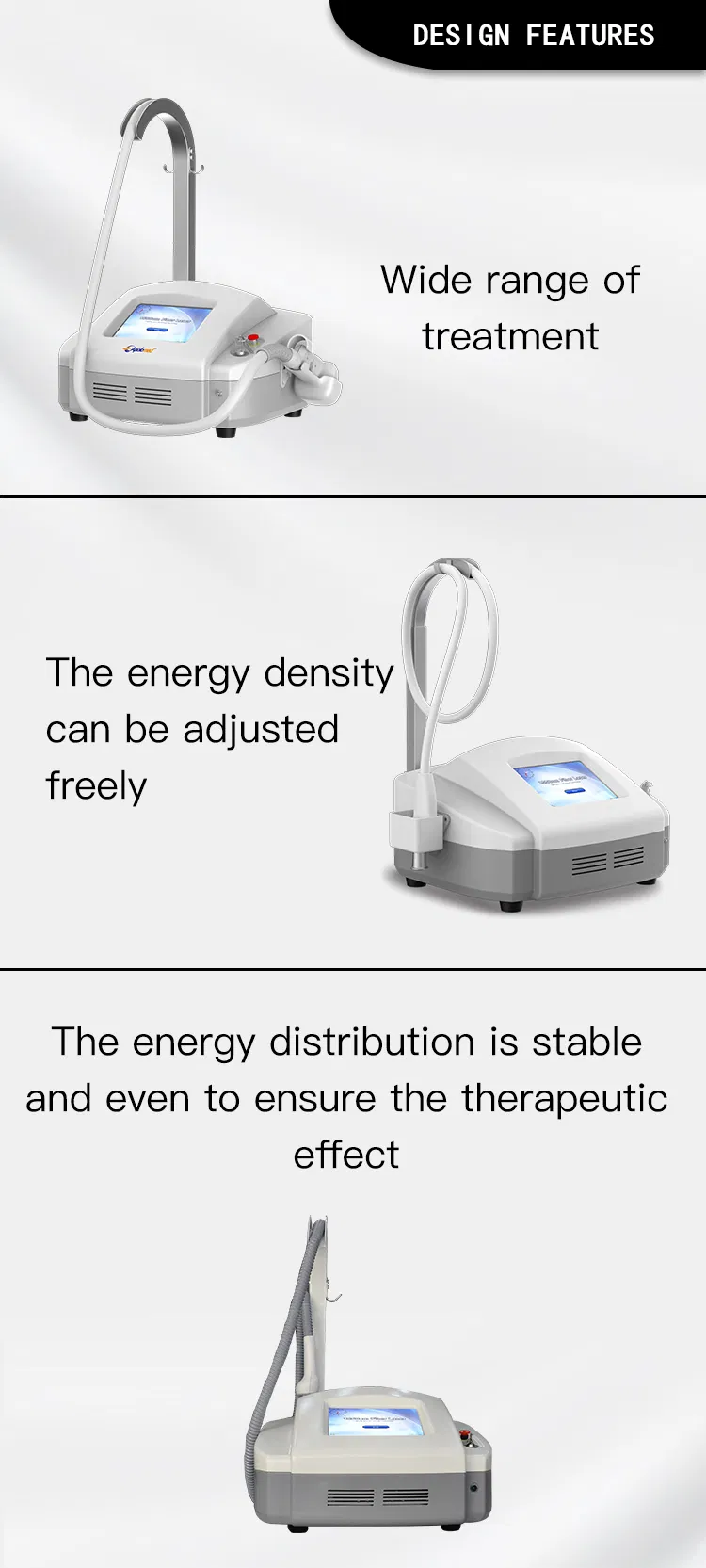

| Density | 25~3025 PPA/cm2 (12 level) |
| Scan area | 20x20mm |
| Pulse width | 0.06~8ms/dot |

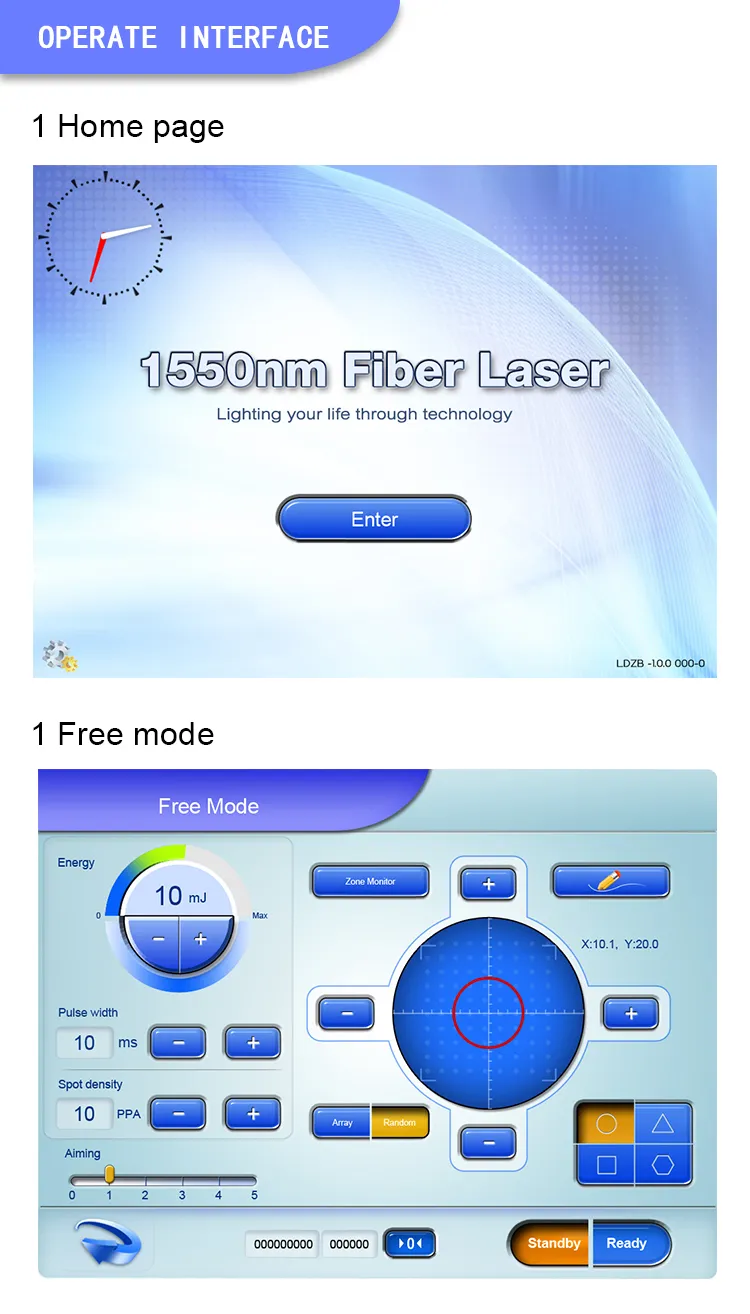

| Operate mode | Array, Random |
| Cooling System | Advanced air cooling system |
| Dimension | 52x44x32cm (L*W*H) |
| Weight | 30Kg |

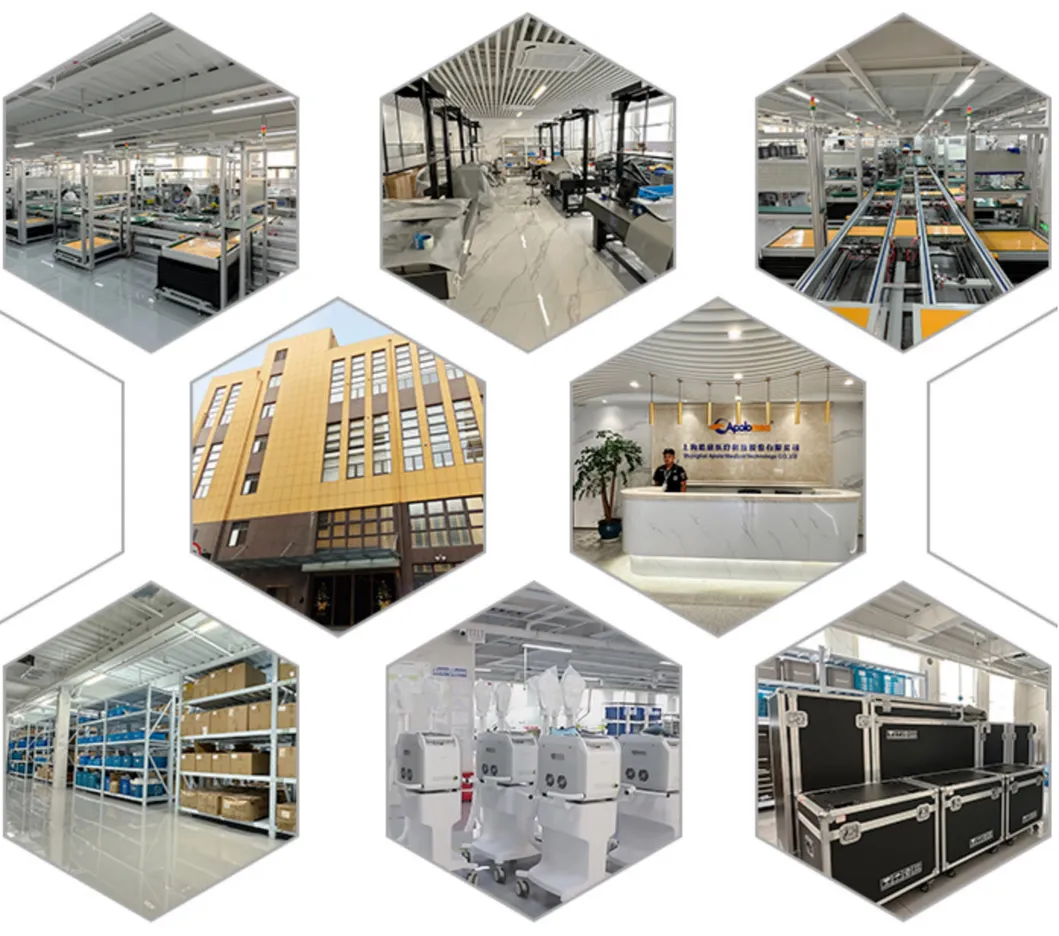

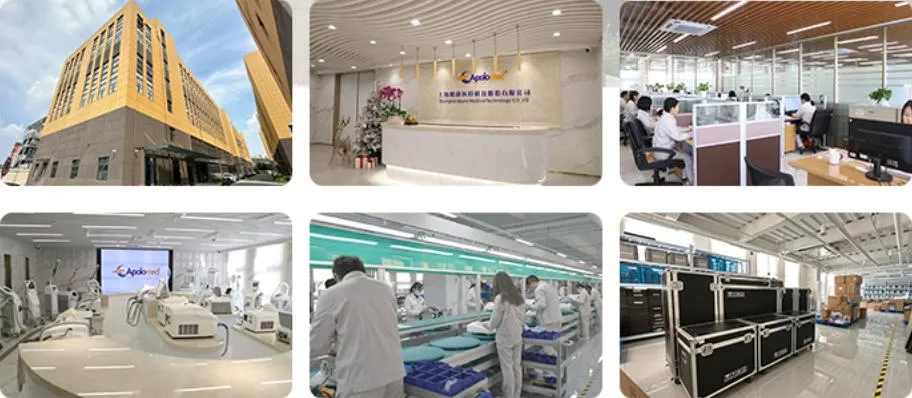

Our facility is a leading designer and manufacturer of Intense Pulsed Light (IPL) and various laser technologies including Pico Nd:YAG, CO2, and Erbium Glass. Since 2001, we have developed over 40 high-standard devices with patented technologies to meet global medical and aesthetic requirements.
Equipments are manufactured strictly in accordance with ISO 13485. Products comply with Medical CE certificates under Council Directive 93/42/EEC (MDD) and regulations (EU) 2017/745 (MDR). We also hold certificates for US 510K, Australia TGA, and Brazil Anvisa.
