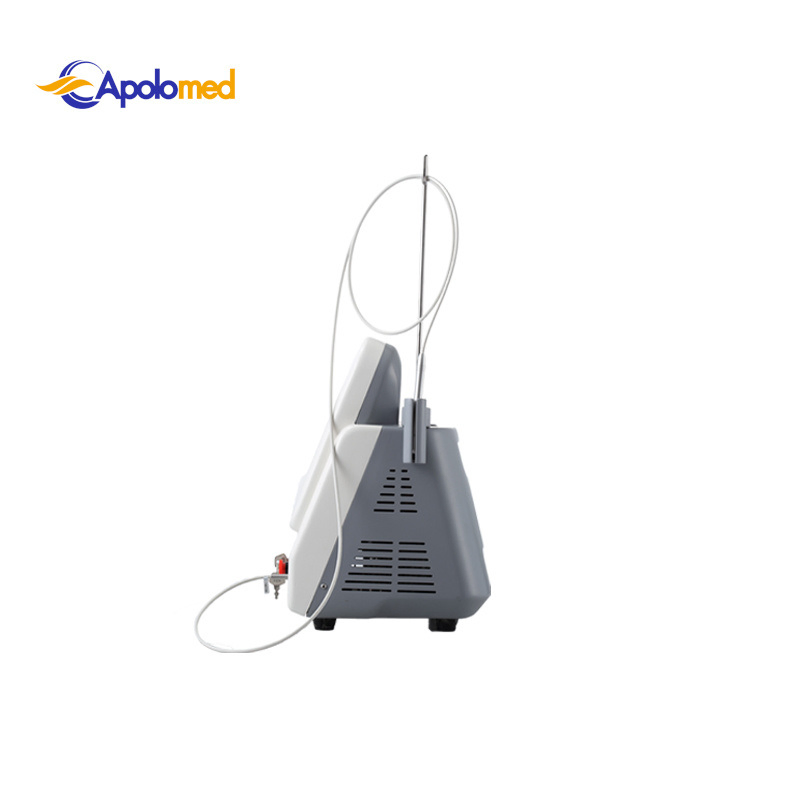

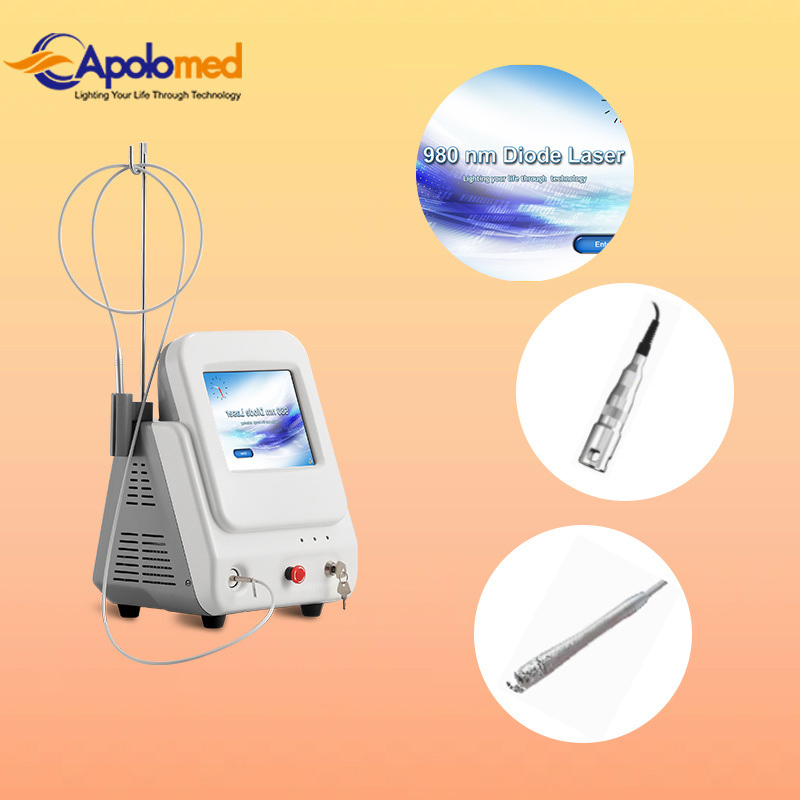

Aesthe Medical
1 / 5

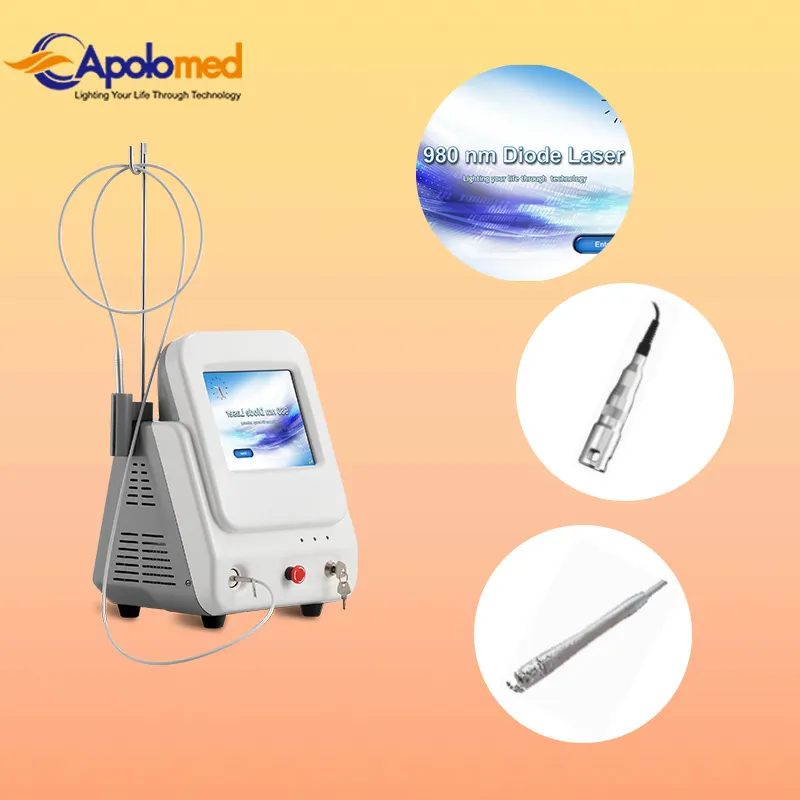

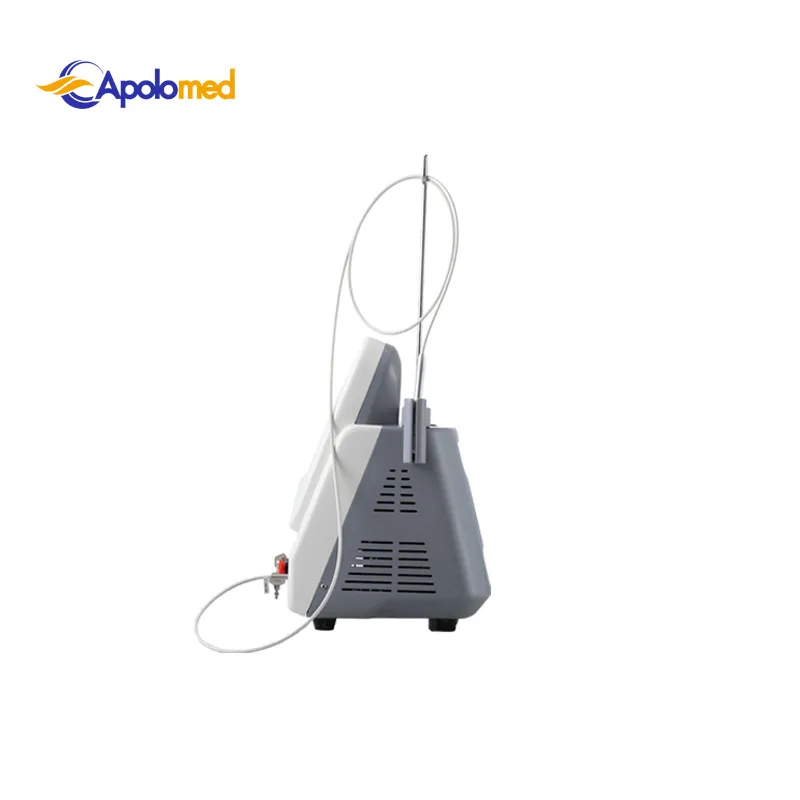

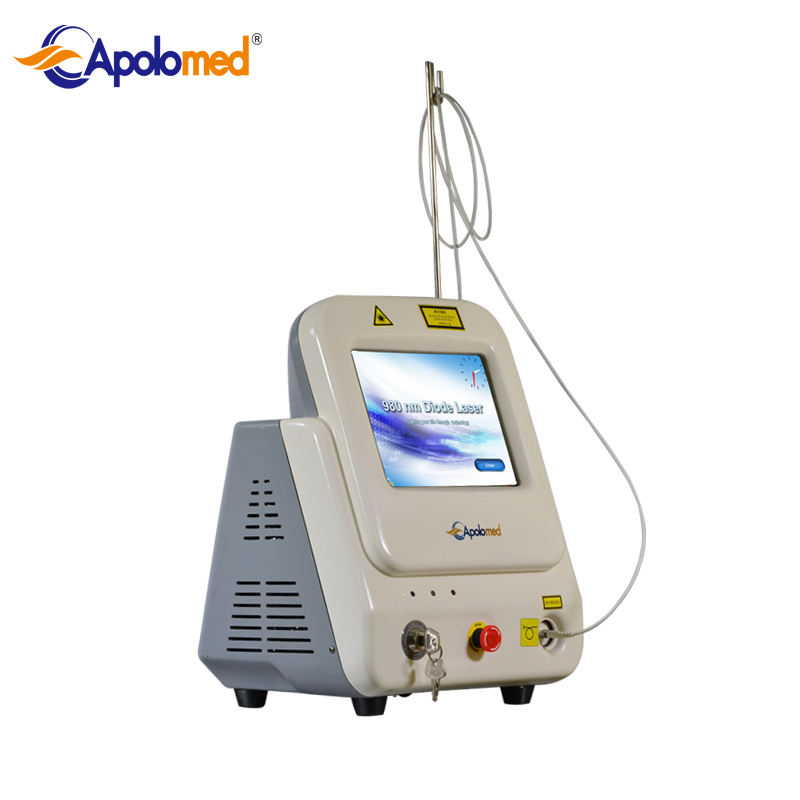

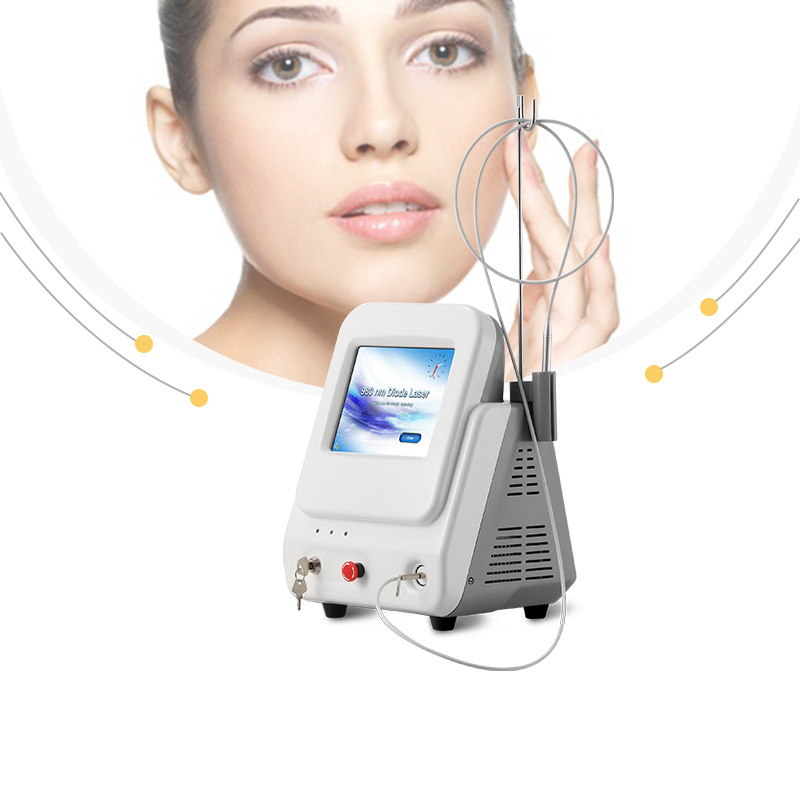

| Model NO. | HS-890 |
| Application | for Commercial |
| Portable | Portable |
| Certification | CE0197, ISO13485, FDA 510K |
| Wavelength | 980nm |
| Output Power | 2~30W |
| Output Modes | CW, Single or Repeat Pulse |
| Pulse Width | 5~400ms |
| Cooling System | Air Cooling |

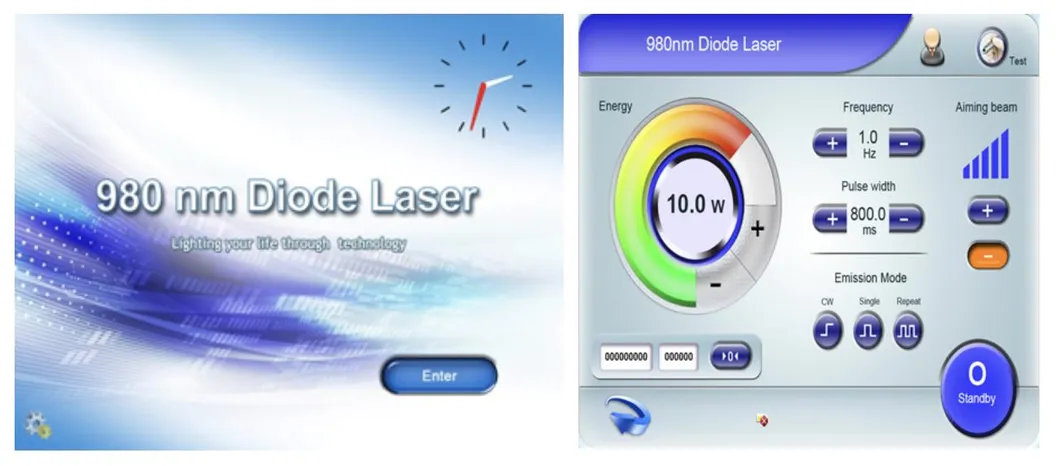

| Control Mode | 8" True Color Touch Screen |
| Power Supply | AC 100~240V, 50/60Hz |

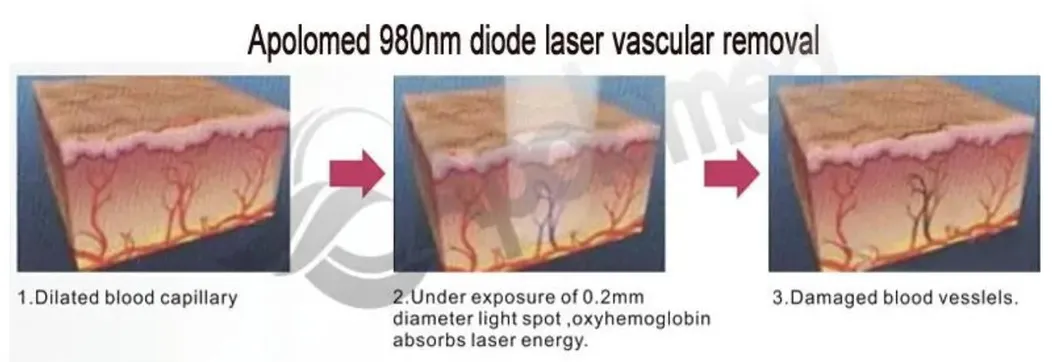

PRINCIPLE
Based on the theory of "selective laser photothermal", the 980nm diode laser system uses a specific wavelength to penetrate the skin for vascular treatment. Hemoglobin and red pigments in the capillaries maximize absorption of the laser energy, leading to solidification, vessel shrinkage, and eventually metabolic degradation.
Clinical Indications:
| Feature | Specification |
|---|---|
| Wavelength | 980nm |
| Laser Output Power | 2~30W |
| Output Modes | CW, Single or Repeat Pulse |
| Pulse Width | 5, 10~400ms |
| Pulse Repetition Rate | 1, 2, 3, 5, 10~50Hz |

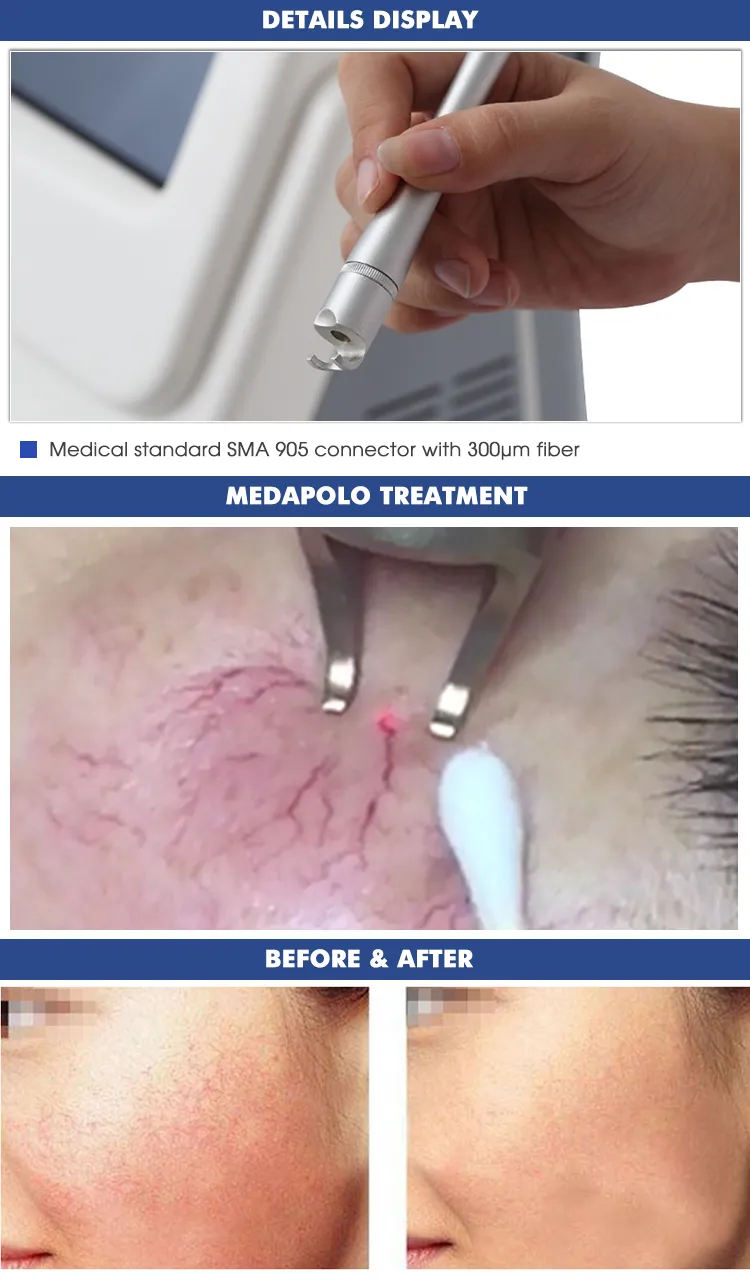

| Transmission System | Fibers of 300um, with SMA 905 connector |
| Aiming Beam | Diode 650nm (red), ≤2mW |
| Cooling System | Air Cooling |
| Dimension | 28*27*37cm (L*W*H) |
| Weight | 8 Kgs |
BEFORE / AFTER RESULTS

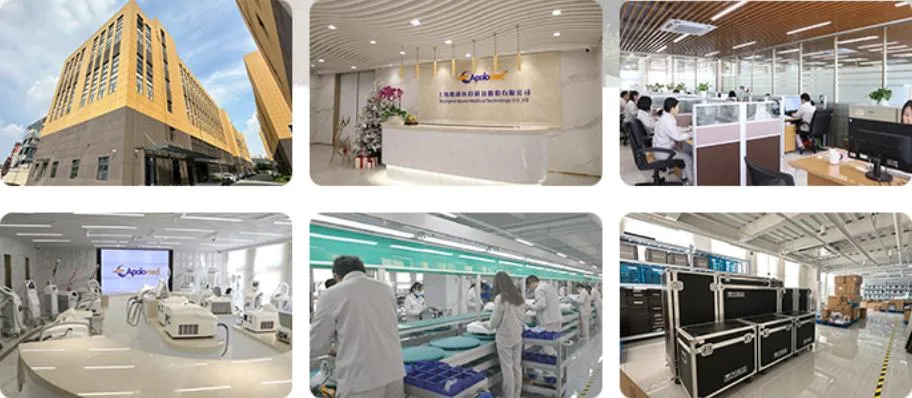

As a leading designer and manufacturer since 2001, we specialize in Intense Pulsed Light (IPL), various Laser technologies (Pico Nd:YAG, CO2), Body Slimming, and PDT LED systems. All devices are designed in-house with patented technologies.

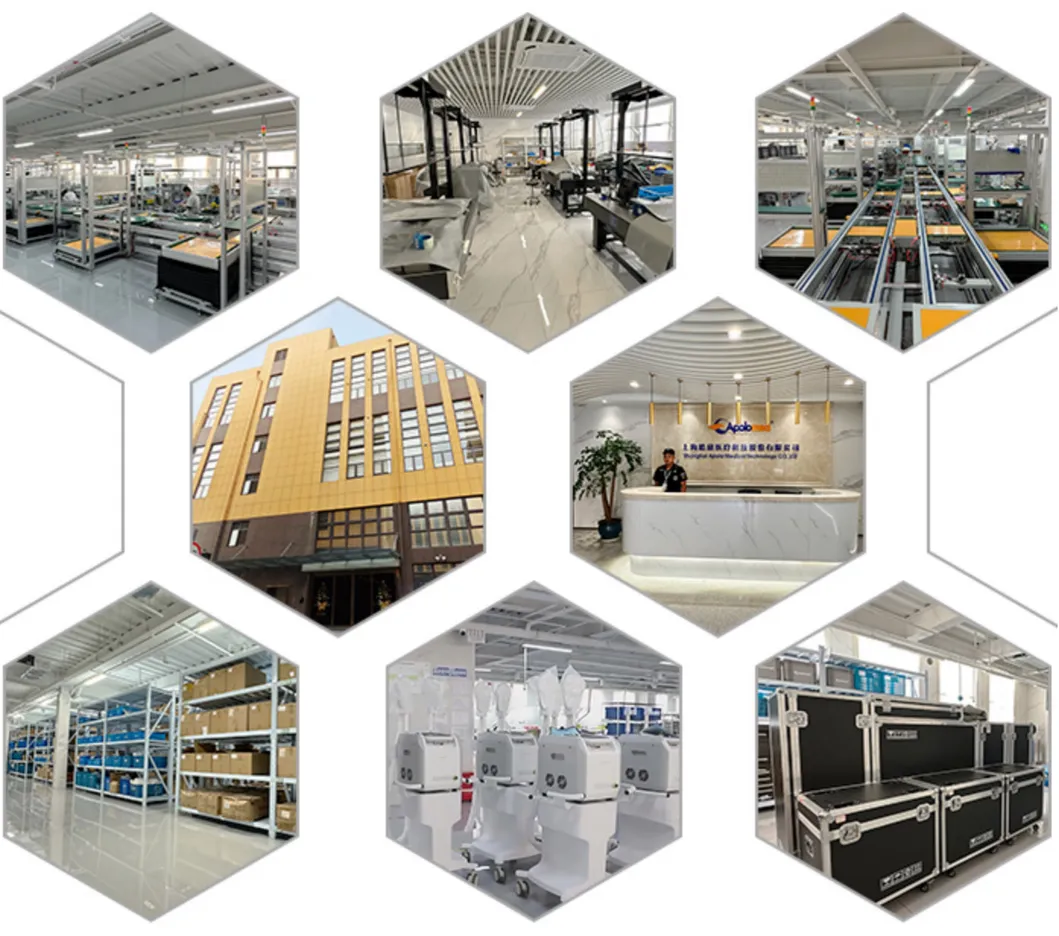

Certifications & Quality Control
Equipment is manufactured strictly in accordance with ISO 13485. Products comply with Medical CE certificates, US FDA 510K, Australia TGA, and Brazil Anvisa regulations.
