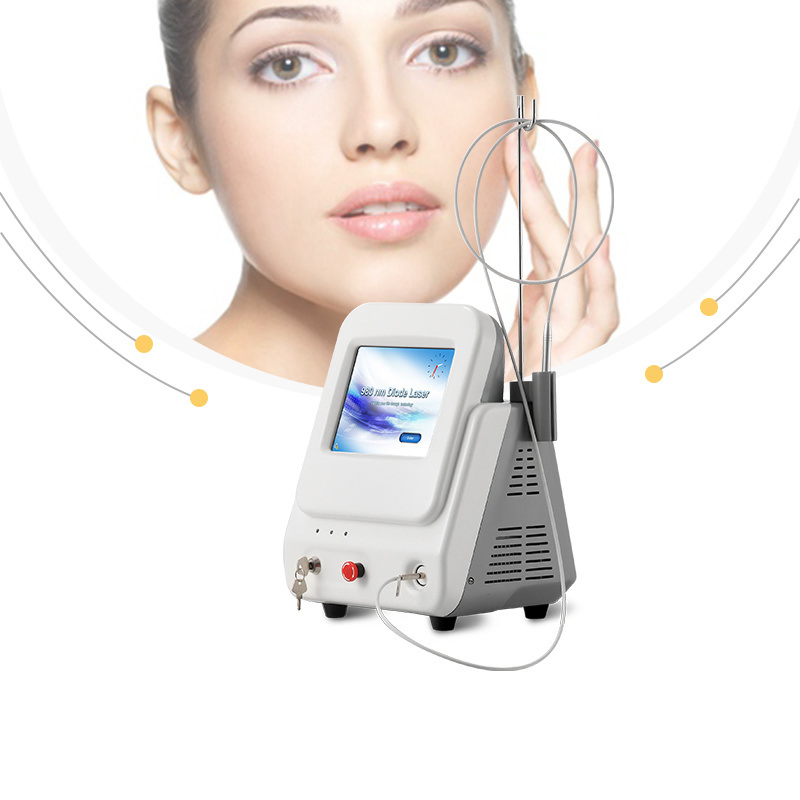

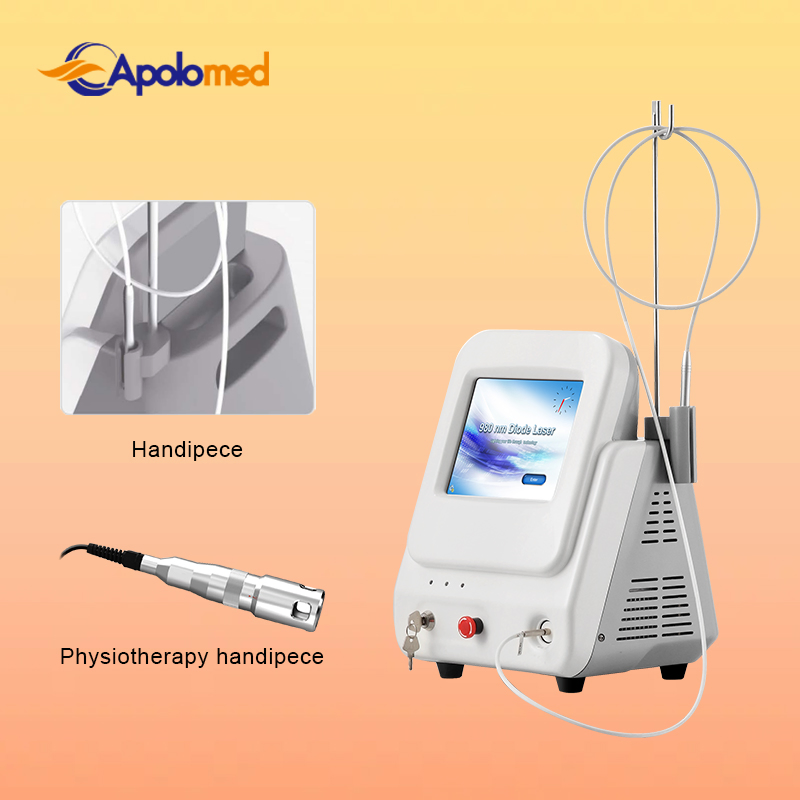

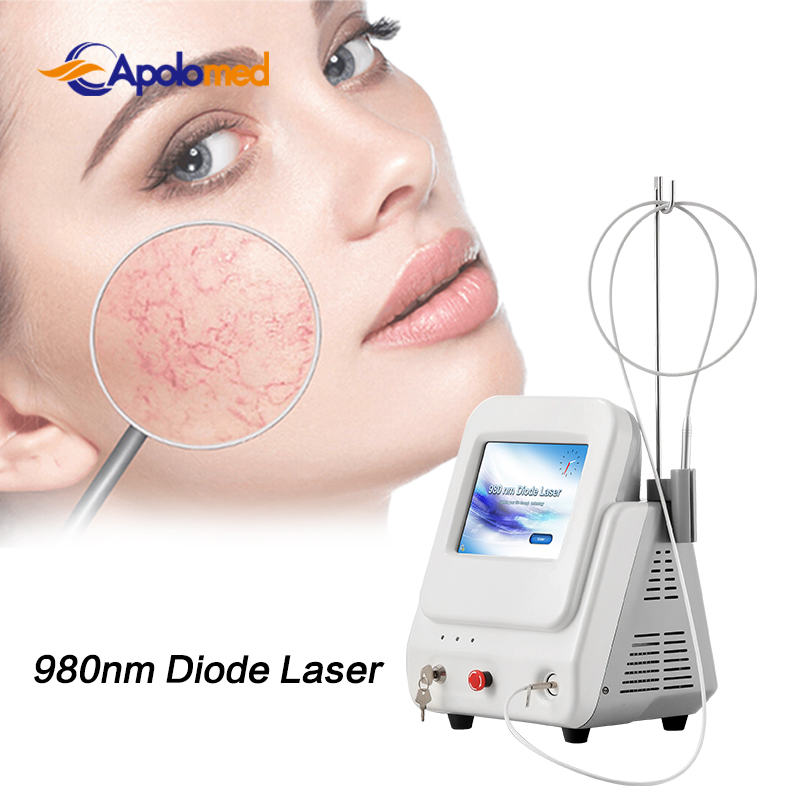

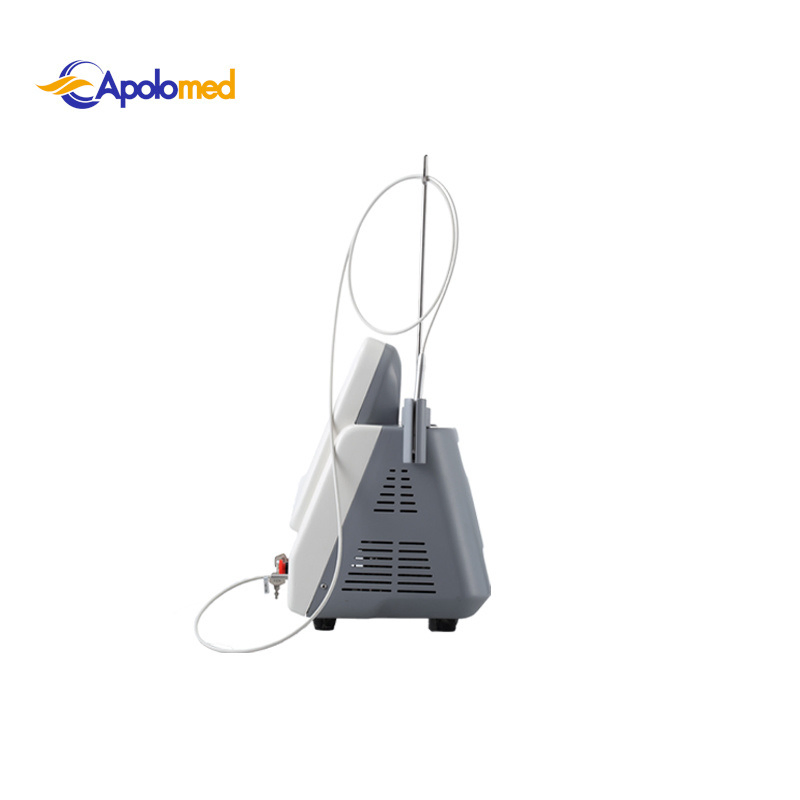

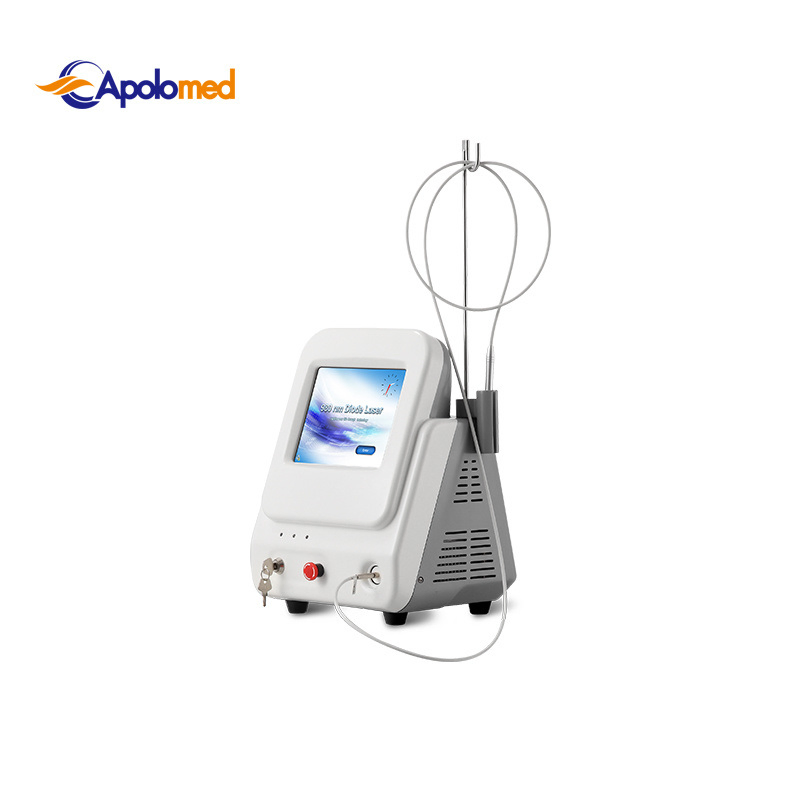

28*27*37cm Carton Packed Angiotelectasis Vascualr Lesions Diode Laser 980nm Vascular Removal Plant
28*27*37cm Carton Packed Angiotelectasis Vascualr Lesions Diode Laser 980nm Vascular Removal Plant
28*27*37cm Carton Packed Angiotelectasis Vascualr Lesions Diode Laser 980nm Vascular Removal Plant
28*27*37cm Carton Packed Angiotelectasis Vascualr Lesions Diode Laser 980nm Vascular Removal Plant
28*27*37cm Carton Packed Angiotelectasis Vascualr Lesions Diode Laser 980nm Vascular Removal Plant
1 / 5
28*27*37cm Carton Packed Angiotelectasis Vascualr Lesions Diode Laser 980nm Vascular Removal Plant
28*27*37cm Carton Packed Angiotelectasis Vascualr Lesions Diode Laser 980nm Vascular Removal Plant
28*27*37cm Carton Packed Angiotelectasis Vascualr Lesions Diode Laser 980nm Vascular Removal Plant
28*27*37cm Carton Packed Angiotelectasis Vascualr Lesions Diode Laser 980nm Vascular Removal Plant
28*27*37cm Carton Packed Angiotelectasis Vascualr Lesions Diode Laser 980nm Vascular Removal Plant

28*27*37cm Carton Packed Angiotelectasis Vascualr Lesions Diode Laser 980nm Vascular Removal Plant

Customization: Available
Type: Vascular Removal
Theory: 980nm Diode Laser
Send Inquiry

Product Description

i

Basic Specifications

Model NO.
HS-890
Application
for Commercial
Portable
Portable Design
Certification
CE0197, ISO13485, FDA 510K
Wavelength
980nm
Output Power
2~30W
Cooling System
Air Cooling
Production Capacity
2300 Sets Per Month
★

Product Principle

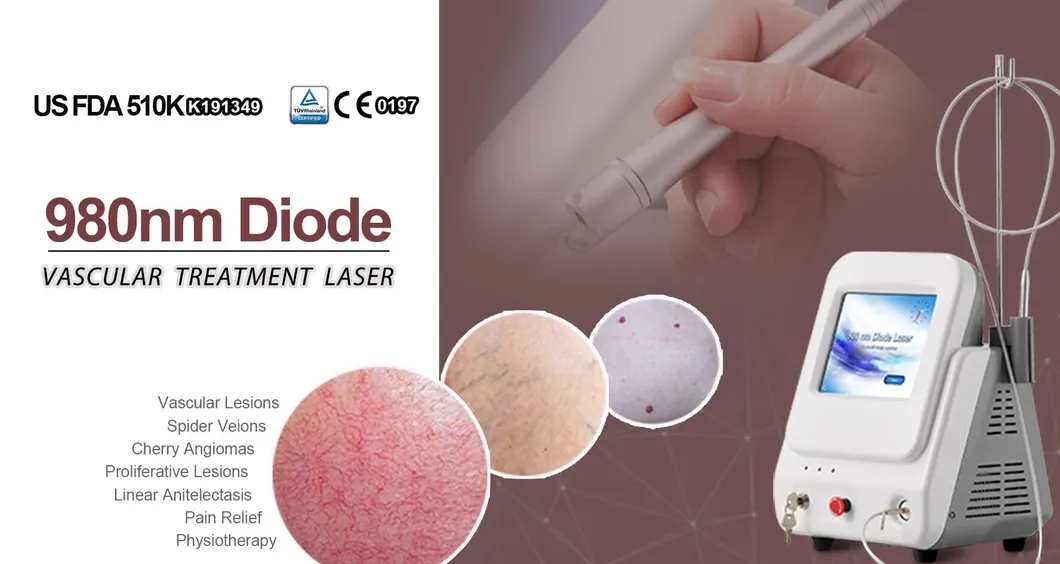

Laser Device Overview
Based on the theory of "selective laser photothermal", the 980nm diode laser system uses a specific 980nm wavelength to penetrate the skin for vascular treatment. During laser irradiation, hemoglobin and red pigment in capillaries maximize the absorption of laser energy. This results in solidification, blocking blood vessels, and causing capillaries to shrink, leading to intravascular coagulation and eventual metabolic degradation.
Due to the specific 980nm wavelength, it ensures normal skin tissue remains intact to the greatest degree during vascular treatment, providing a superior therapeutic effect without damaging the superficial skin.

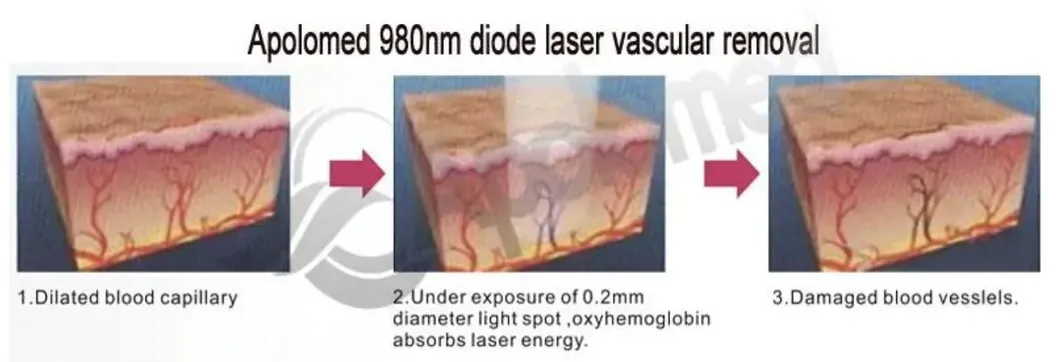

Principle Diagram

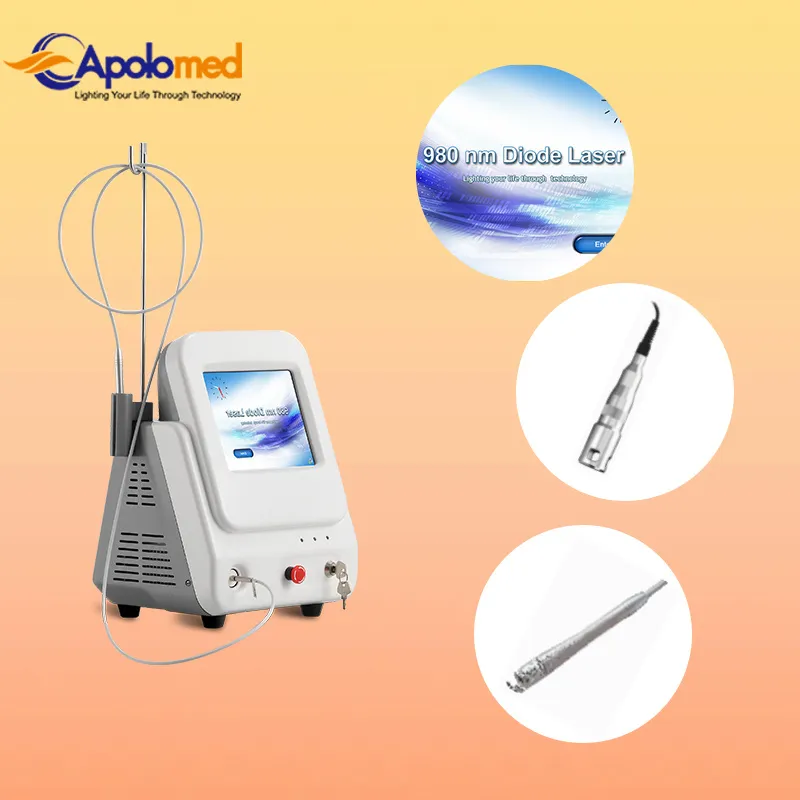

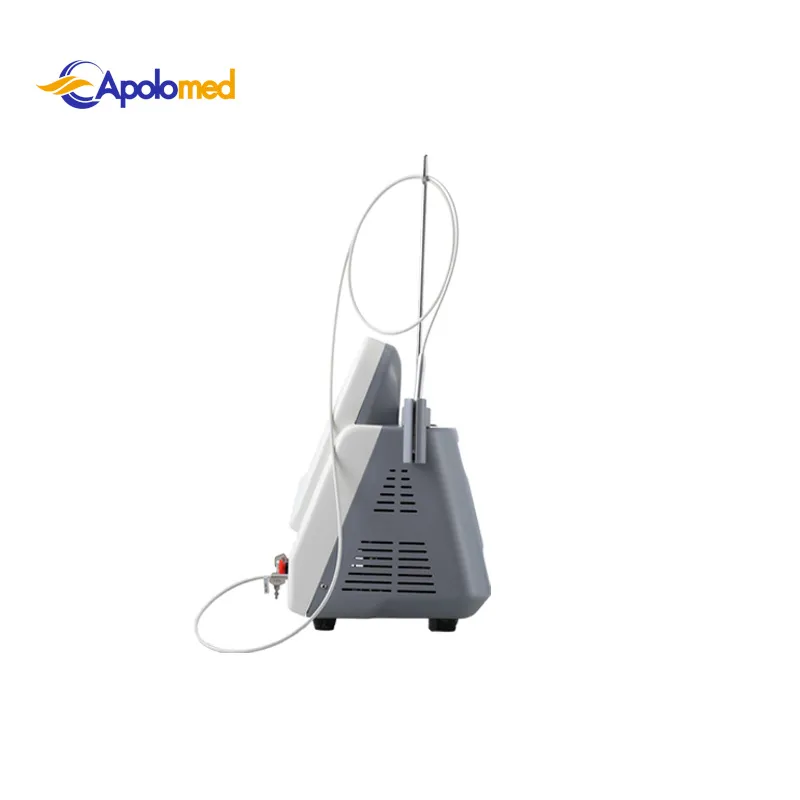

Application 1 Application 2 Application 3
⚙

Technical Specifications

Wavelength980nm
Laser Output Power2~30W
Output ModesCW, Single or Repeat Pulse
Pulse Width5, 10~400ms
Pulse Repetition Rate1, 2, 3, 5, 10~50Hz
Single Pulse Energy0.1~12J
Repeat Pulse Power0.1~18W
Transmission SystemFibers of 300um, with SMA 905 connector
Aiming BeamDiode 650nm(red), ≤2mW
Control Mode8'' True Color Touch Screen
Dimension28*27*37cm (L*W*H)
Weight8Kgs
❤

Key Advantages

  • Medical Standard: TUV Medical CE approved and USA FDA cleared.
  • High Power: 30W precise output for removal of thread veins.
  • Versatile Modes: Pulse widths adjustable from 5 - 400ms plus continuous mode.
  • Portability: Compact design weighing only 8kgs, ideal for versatile workspace use.
  • User Friendly: Android-based 8" true color touch screen, intuitive and easy to operate.
  • Efficiency: 30-45 minutes treatment procedure with no downtime.

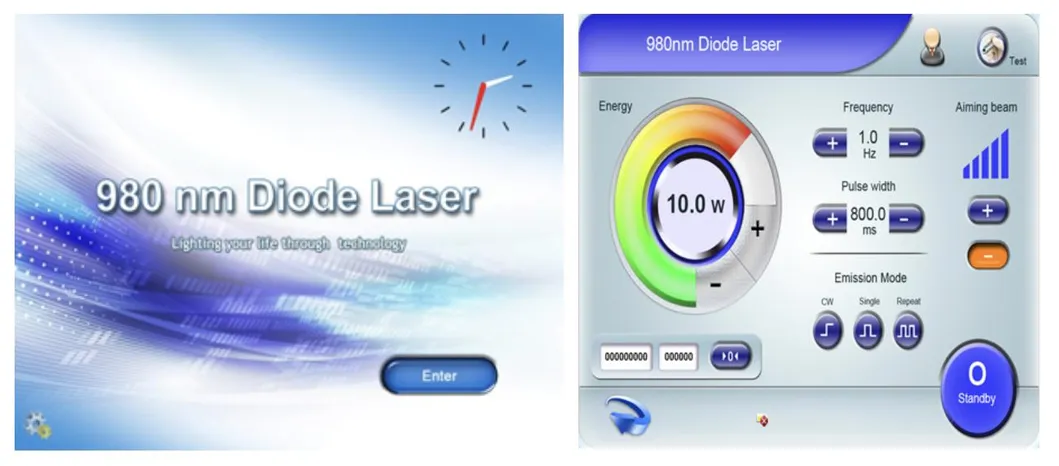

System Interface Before and After Results
✔

Quality Assurance & Gallery

Equipment is manufactured strictly in accordance with ISO 13485. Products comply with Medical CE certificates under Council Directive 93/42/EEC(MDD) and regulations (EU) 2017/745(MDR).
Certificates Factory View
Exhibition Shipping
?

Frequently Asked Questions

1. What is the primary use of the 980nm diode laser?
The 980nm diode laser is specifically designed for vascular treatments, including the removal of spider veins, cherry angiomas, and other vascular lesions on both the face and body.
2. Is the treatment painful for the patient?
Most patients experience only mild discomfort, often described as a slight snapping sensation. The 980nm wavelength is highly selective, which minimizes damage to surrounding tissue and improves patient comfort.
3. How many sessions are typically needed for spider vein removal?
While some small vessels disappear after a single session, most clinical indications require 1-3 sessions depending on the depth and size of the vascular lesions.
4. Is there any downtime after the procedure?
There is virtually no downtime. Most patients can return to their daily activities immediately. Slight redness may occur but usually subsides within a few hours.
5. Why choose this portable 8kgs model over larger units?
This portable design offers the same 30W high-power output as vertical machines but with a smaller footprint, making it ideal for clinics with limited space or for practitioners who travel between offices.
6. Does the system come with training and technical support?
Yes, we provide free technical training and support. The intuitive Android-based touch screen also includes factory setting programs to make the setup quick and easy for new users.
